100A High Voltage DC Contactor 1500VDC Ceramic Sealed Relay

Share to:

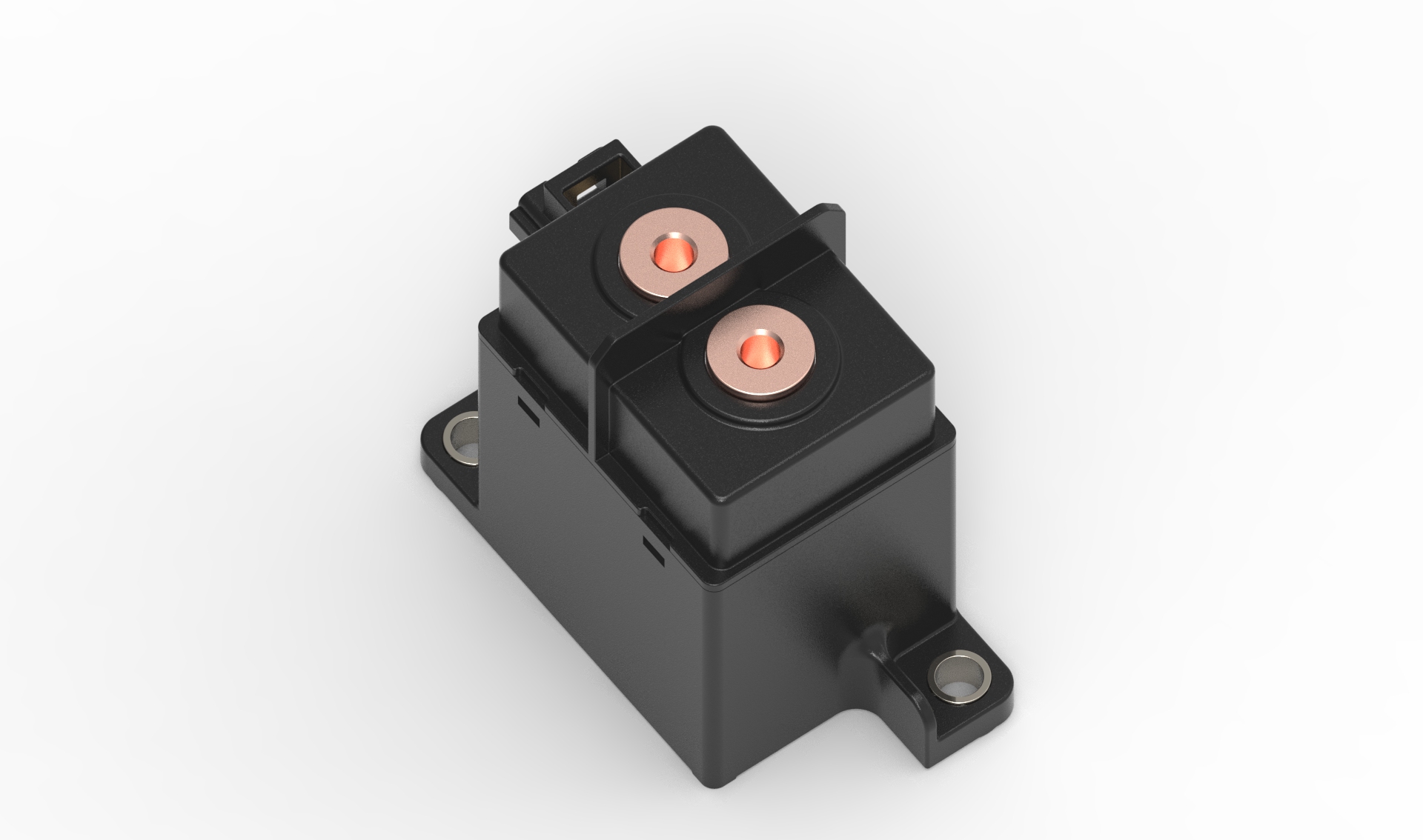

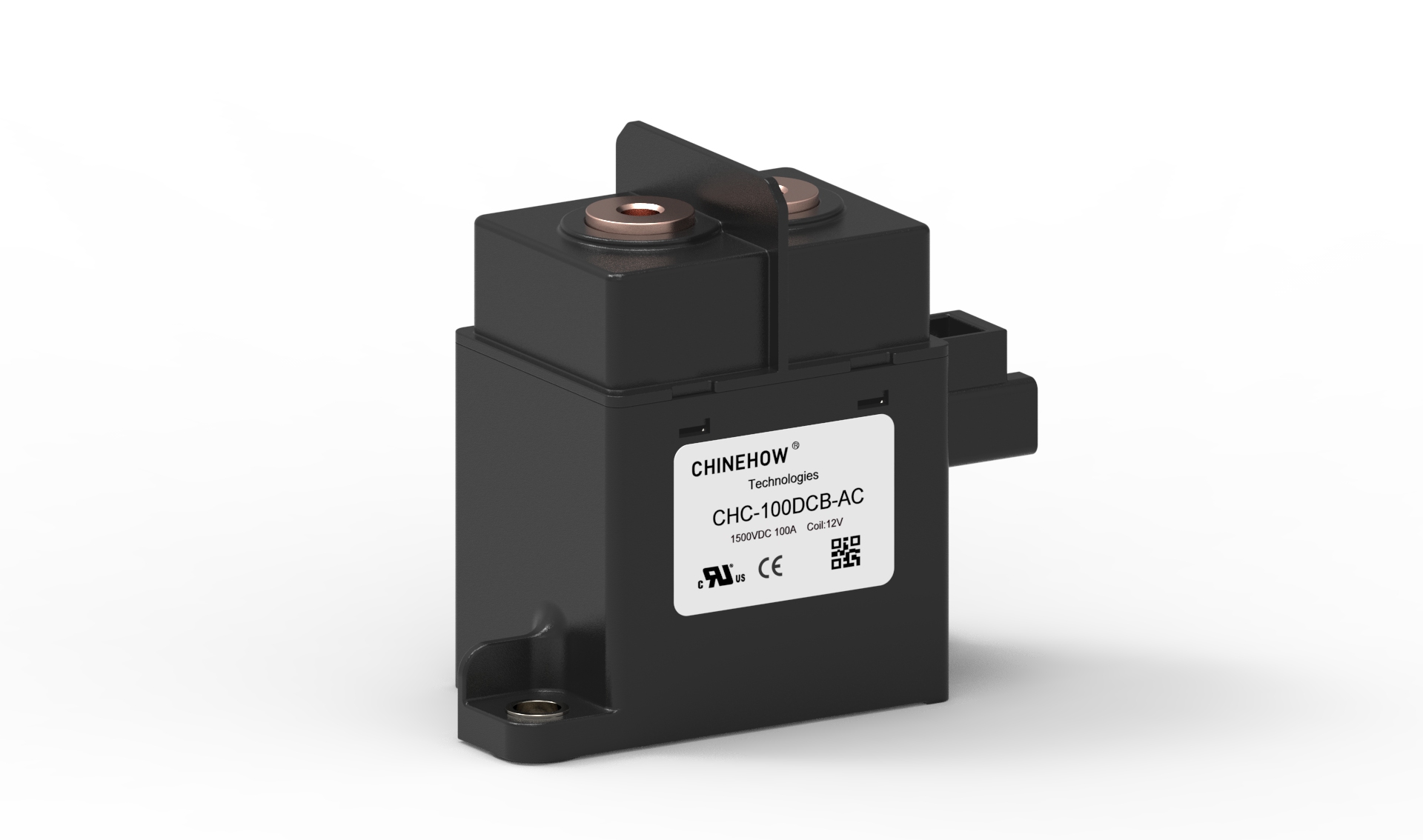

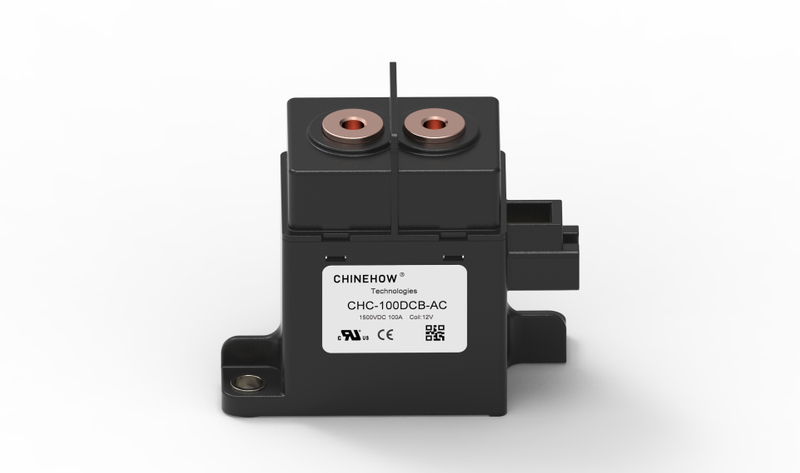

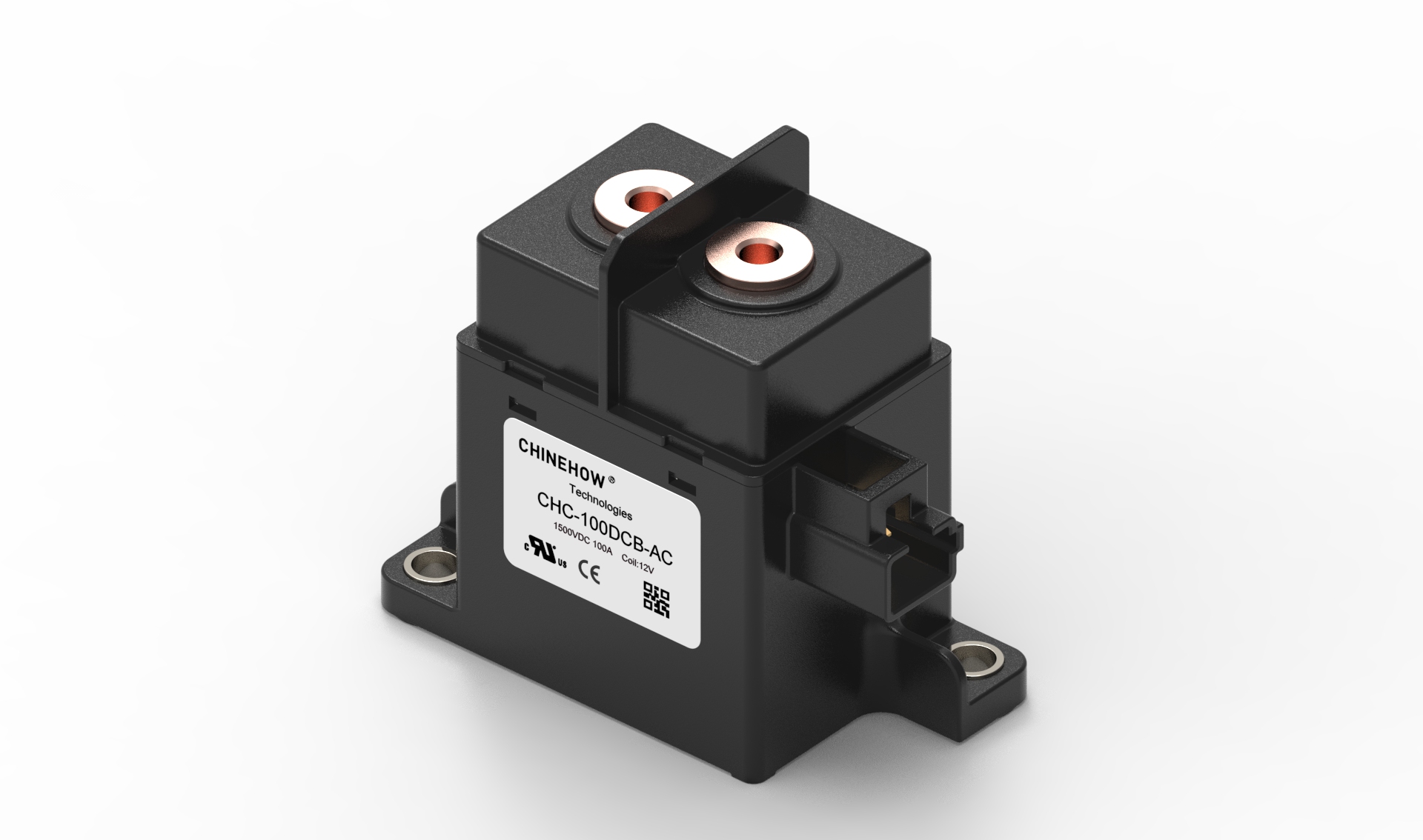

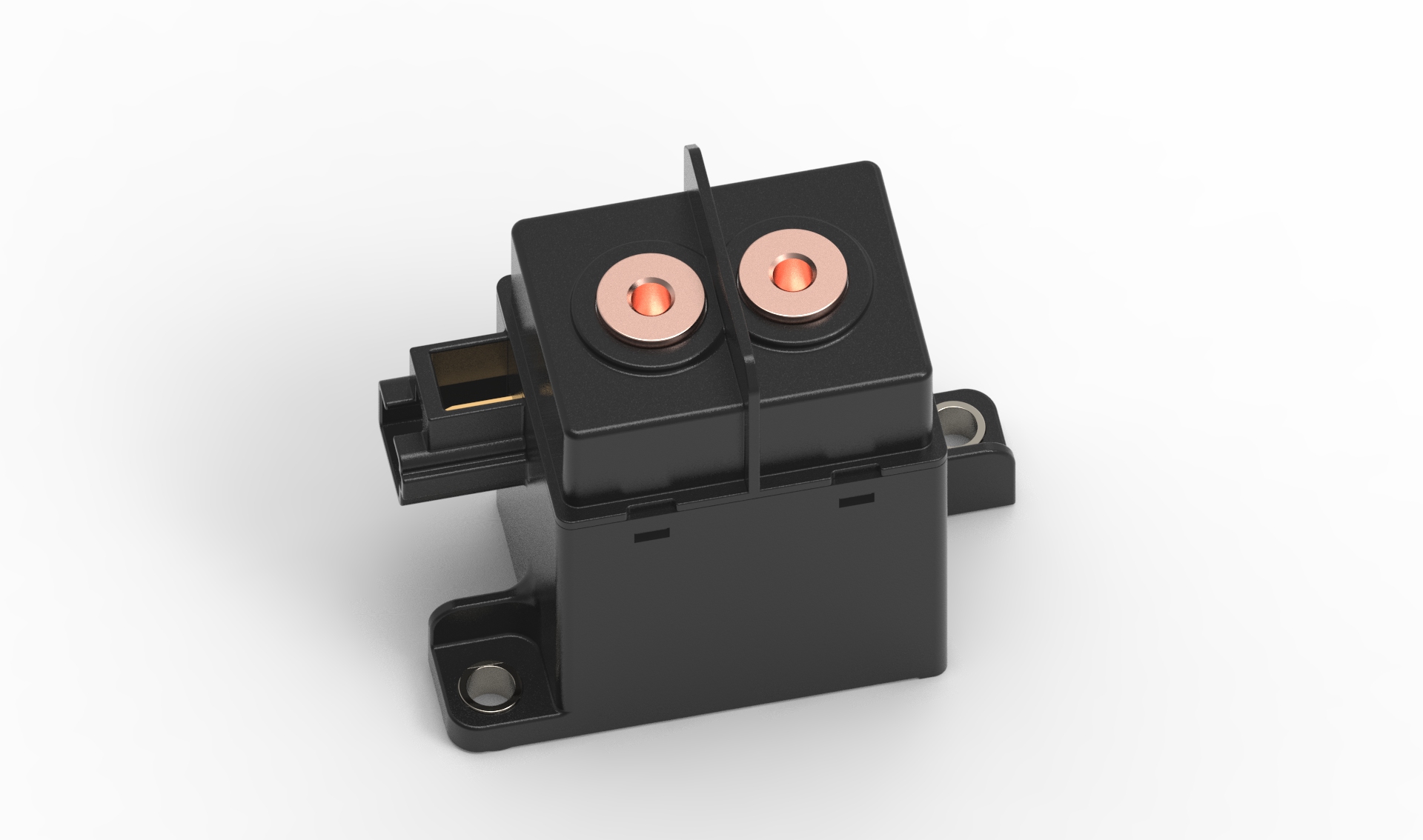

100A High Voltage DC Contactor 1500VDC Ceramic Sealed Relay

High load control capability: Rated operating voltage 12VDC to 1500VDC, rated operating current 100A.
Reliable: Features a ceramic sealed structure with hydrogen gas mixture inside the chamber, eliminating the risk of arc leakage, with low and stable contact resistance.
Safety: Polarity-free arc-extinguishing design, insensitive to installation direction, suitable for various scenarios involving bidirectional current in circuits, ensuring safe and feasible use.
Environmental protection: All components comply with the latest EU RoHS environmental protection requirements.

Availability:

Quantity:



Inquire Add to Basket

Model:
CHC-100
Brand:
Chinehow

Product Description

High voltage DC contactor, also called high voltage DC relay without distinction in the industry, is widely used in electric vehicles (EV) and hybrid electric vehicles (HEV).It is an electromechanical switching device with a coil to generate a magnetic force that mechanically operates an electric contact.

WPS图片(1)

Product Features

◇Ceramic sealing structure with H2 mixed gas filled in the chamber, no risk of arc leakage, low&stable contact resistance;

◇High value of short-circuit current withstanding to ensure the contacts can be reliably closed when encountering short-circuit current, contributing to no risk of fire and explosion;

◇Non-polarity arc extinguishing design that is applicable to a range of scenarios with bidirectional current circuit safely and reliably;

◇Carrying current 40A continuously at 85°C;
