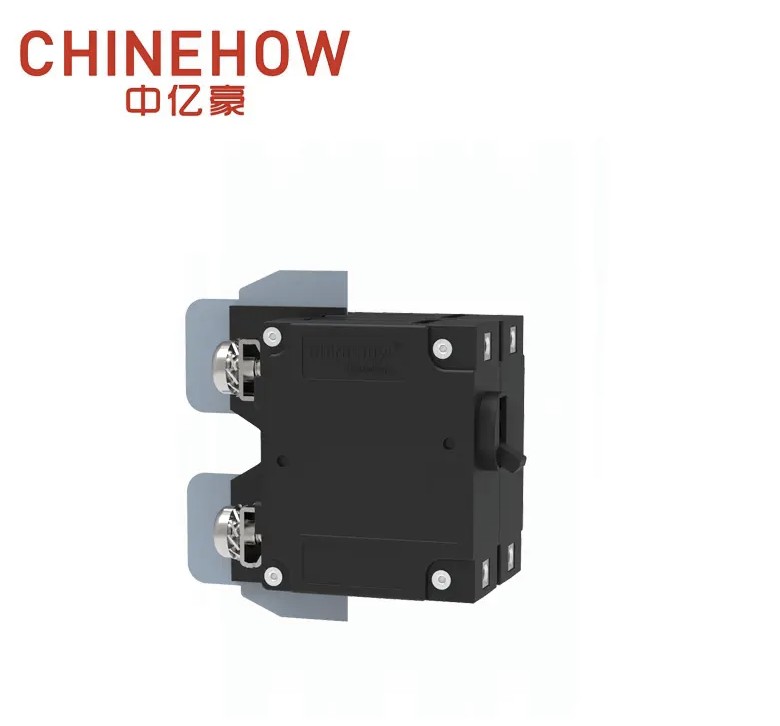

What is Hydraulic Magnetic Circuit Breaker

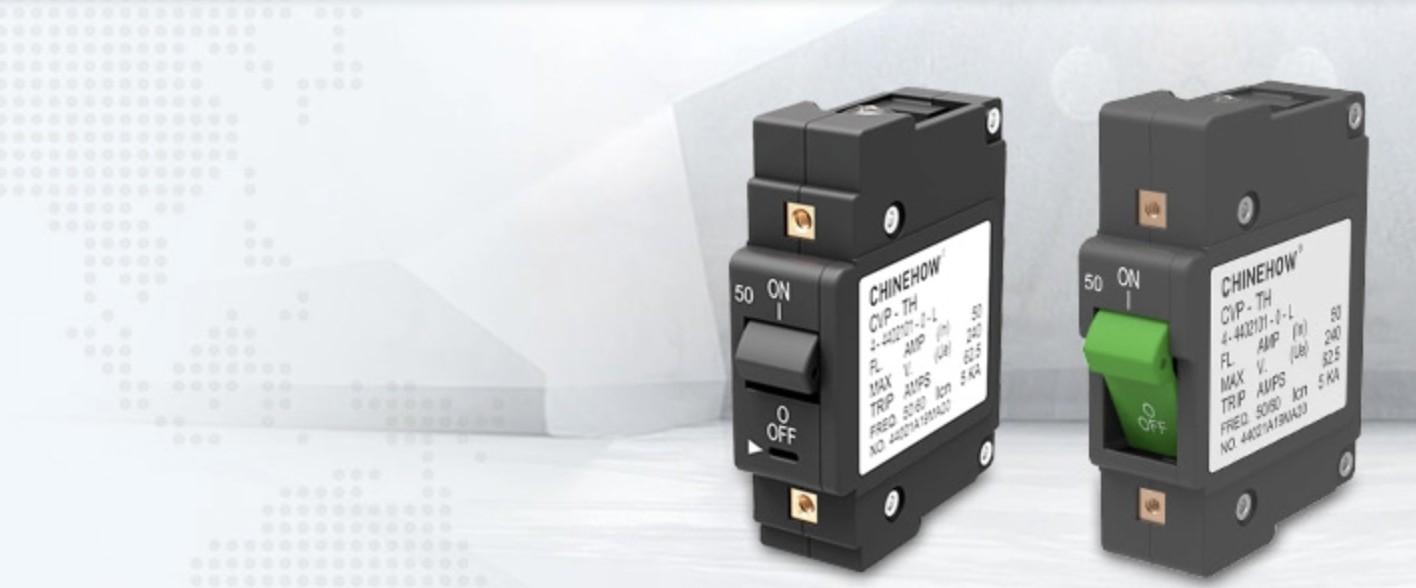

Hydraulic-Magnetic circuit breakers rely on a solenoid coil wound around a sealed tube containing an iron core, spring and damping fluid. When current exceeds the normal rating (overload), the magnetic field pulls the core-but the fluid introduces a controlled time-delay, allowing brief surges (like motor start-up) to pass without nuisance trips. In case of a large fault or short circuit, magnetic force alone triggers instant trip, cutting off power immediately. Unlike traditional thermal breakers, the trip threshold stays stable regardless of ambient temperature. As part of our portfolio, the CHINEHOW CVP TH Series uses this proven hydraulic-magnetic technology — delivering precise, temperature-stable, fast protection suitable for global industrial and commercial applications.
Feature
Precision
The CVP TH Series offers temperature-independent, hydraulic-magnetic protection with accurate trip curves that prevent nuisance shutdowns, ensuring reliable performance for sensitive electronics and industrial power systems.
Versatility
With current ratings from 1–50A and multiple actuator options, the breaker adapts to telecom power, industrial control panels, and equipment requiring stable, low-current overcurrent protection.
Durability
Robust panel-mount construction, M5 terminals, and vibration-resistant design provide long-lasting performance in harsh environments, including machinery, transportation, and continuous-duty power modules.
Compliance
Certified to UL489, TUV, CE, and CCC standards, the CVP TH Series supports global equipment integration, reducing certification effort and enabling seamless export to international markets.
Applications of Hydraulic Magnetic Circuit Breaker
Reliable, temperature-stable protection engineered for telecom, industrial control, and power system applications.
Telecom Power Systems
In telecom rectifiers, network racks, and base-station power modules, the CVP TH Series prevents nuisance trips caused by inrush currents. Users benefit from stable uptime, fewer service interruptions, and reliable protection for sensitive communication electronics.
Industrial Control Panels
Automation cabinets, PLC systems, and industrial machinery rely on precise trip curves to avoid unexpected shutdowns. With strong terminals and vibration resistance, users gain safer operation, easier maintenance, and dependable overload protection in demanding environments.
UPS and Power Modules
UPS units, server power supplies, and modular AC systems require accurate low-current protection. The CVP TH Series offers temperature-stable performance, helping users maintain continuous operation, protect costly equipment, and reduce downtime risks.
Product Advantages
Temperature-Stable Protection
Hydraulic-magnetic technology maintains accurate trip performance regardless of ambient temperature, giving users consistent protection in data centers, industrial plants, and outdoor environments without nuisance shutdowns.
Surge-Resistant Reliability
The CVP TH Series tolerates equipment inrush currents, preventing unnecessary trips during power-up. Users enjoy smoother operation for power modules, UPS systems, and sensitive electronics.
Robust Installation Security
Strong M5 terminals and panel-mount construction ensure stable connections even under vibration, helping users maintain long-term reliability in machinery, automation cabinets, and transportation systems.
Global Compliance Ready
Certified to UL489, CE, TUV, and CCC standards, the breaker speeds up international equipment integration, reducing testing costs and helping users launch products into global markets more easily.
Resource
- Name
- Update
- Size
- Downloads
- Thumbnail
- Download
- Copy Link
- SPEC (CVP-HX-1AD4-D125-T)(1U smart circuit breaker(2)(1).pdf
- 2025-07-23
- 3.78MB
- 432
-
- Download
- Copy Link
- SPEC (CVP-LX-1AD4-D63-T)(1U smart circuit breaker).pdf
- 2025-07-23
- 3.71MB
- 94
-
- Download
- Copy Link
- Chinehow Technology Profile - Socket Catalog.pdf
- 2022-05-24
- 1.31MB
- 442
-
- Download
- Copy Link
- Chinehow Technology Profile - Circuit Breaker.pdf
- 2022-05-24
- 8.49MB
- 528
-
- Download
- Copy Link
Why Choose CHINEHOW
Zhejiang Chinehow Technology Co., Ltd., founded in 2003, is an enterprise specializes in the production of circuit protection and circuit connection products.
Strong R&D and Manufacturing
40,000㎡ factory with professional engineers ensures stable quality, continuous innovation, and reliable production capacity.
Global Market Presence
Serving 70+ countries with strong export capability, fast delivery, and dependable international customer support.
Broad Product Range & Customization
Offering diverse circuit protection products and flexible customization to meet telecom, industrial, and power-system requirements.
Related Product
HYDRAULIC MAGNETIC CIRCUIT BREAKER

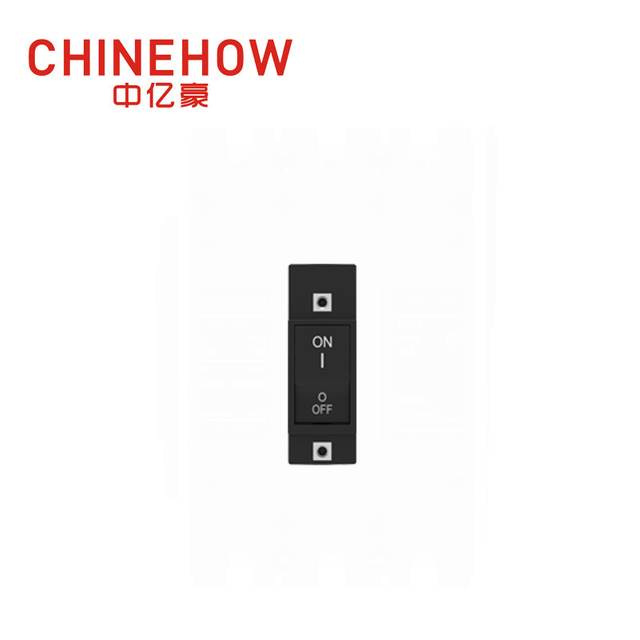

CVP-TH Hydraulic Magnetic Circuit Breaker Flat Rocker Actuator with Tab(Q.C.250) 1P
HYDRAULIC MAGNETIC CIRCUIT BREAKER

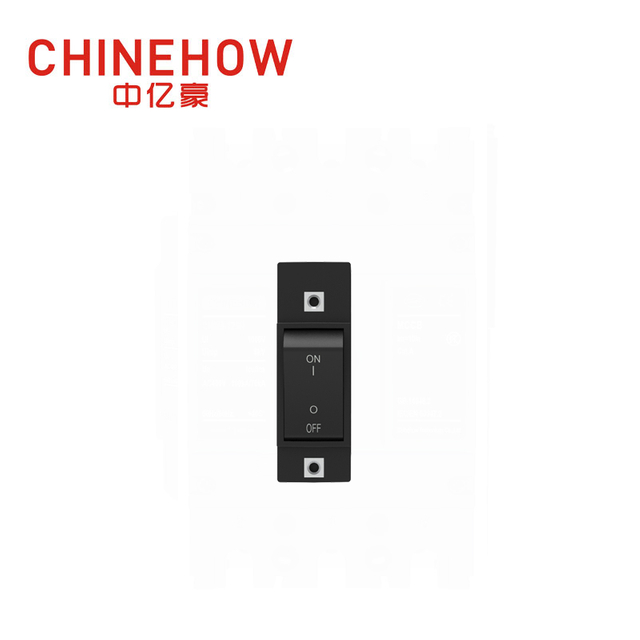

CVP-TH Hydraulic Magnetic Circuit Breaker Angle Rocker Actuator with Tab(Q.C.250) 1P
HYDRAULIC MAGNETIC CIRCUIT BREAKER
CVP-TH Hydraulic Magnetic Circuit Breaker Long Handle Actuator with Tab(Q.C.250) 1P
HYDRAULIC MAGNETIC CIRCUIT BREAKER

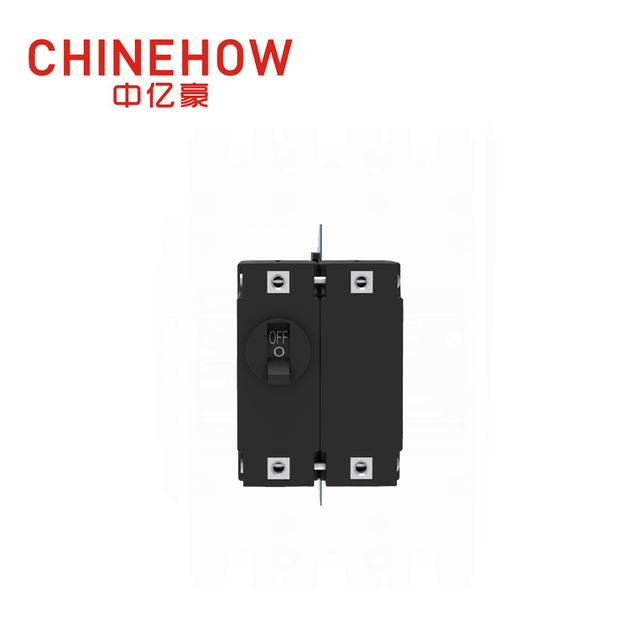

CVP-TH Hydraulic Magnetic Circuit Breaker Short Handle Actuator with M5 Screw Bus 2P
HYDRAULIC MAGNETIC CIRCUIT BREAKER

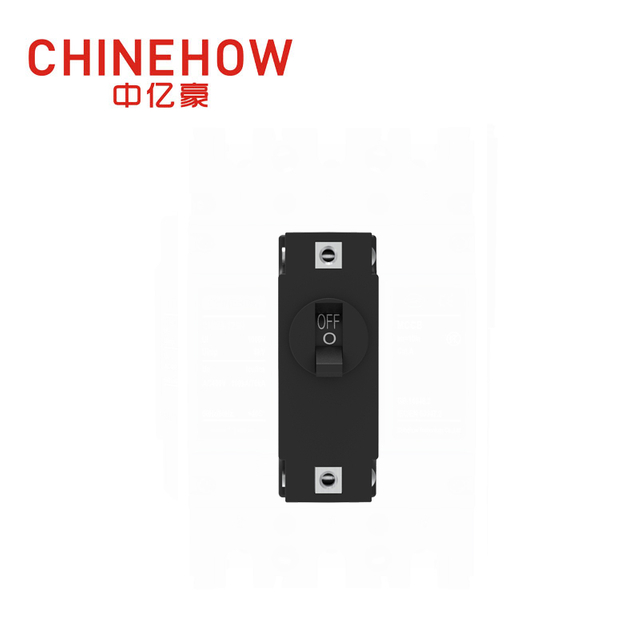

CVP-TH Hydraulic Magnetic Circuit Breaker Short Handle Actuator with Tab(Q.C.250) 1P
HYDRAULIC MAGNETIC CIRCUIT BREAKER
CVP-TH Hydraulic Magnetic Circuit Breaker Flat Rocker Actuator with M4 Screw With Upturend Lugs 1P
HYDRAULIC MAGNETIC CIRCUIT BREAKER
CVP-TH Hydraulic Magnetic Circuit Breaker Angle Rocker Actuator with M4 Screw With Upturend Lugs 1P
HYDRAULIC MAGNETIC CIRCUIT BREAKER
CVP-TH Hydraulic Magnetic Circuit Breaker Long Handle Actuator with M4 Screw With Upturend Lugs 1P
FAQs
Q: What makes a hydraulic magnetic circuit breaker different from a thermal breaker?
Hydraulic magnetic breakers trip based on magnetic force and hydraulic delay, not heat. This ensures accurate protection unaffected by ambient temperature and eliminates false trips.
Q: Can the CVP TH Series handle equipment inrush current?
Yes. The A4 delay curve allows short power-up surges from power supplies, UPS units, and telecom modules without unwanted shutdowns, improving system reliability.
Q: Is the CVP TH Series suitable for global equipment export?
Absolutely. With UL489, CE, TUV, and CCC certifications, the breaker meets major international safety standards and integrates smoothly into global projects.
Q: What installation method does the CVP TH Series support?
It uses a secure panel-mount design with M5 terminals, making it ideal for industrial control cabinets, telecom racks, and equipment with moderate vibration.
Q: Which actuator styles are available for the CVP TH Series?
Users can choose Short Handle, Long Handle, Flat Rocker, or Angle Rocker designs, ensuring the best fit for space constraints and operating preferences.
