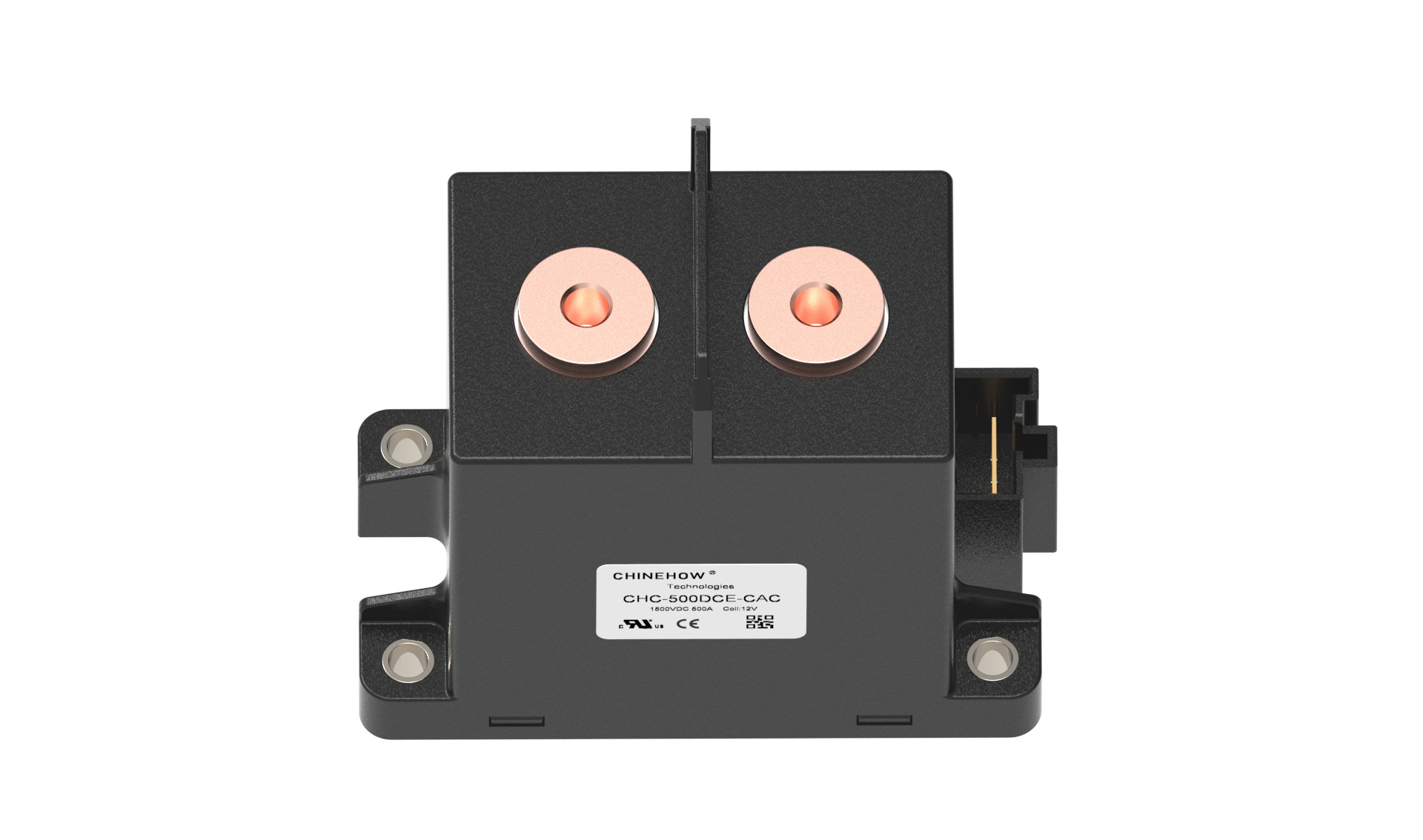

600A EV/HEV Ceramic DC Contactor 500A 600A Relays 1500VDC 24V 48V DC Relay for EV Charging

Main Circuit Rating Current:           300A
Place of Origin:                               Zhejiang, China
Electricity Type:                               DC
Brand Name:                                 CHINEHOW
Model Number:                            CHC-300
Product Name:                              High Voltage DC Contactor
Estimated delivery time:               30days
Place of Origin:                              China
Voltage:                                         Max 1500VDC
Type:                                              DC Contractor
Rated Current:                               300A
Coil Voltage:                                  12/24/48VDC
Brand:                                            CHC-300
Certificate:                                     CE CCC, CB
Availability:
Quantity:
  • CHC-300

  • CHINEHOW

  • 853620

Features:

● Hermetically sealed, designed for application in harsh and explosive environments

● Ceramic Seal Structure, filled in H2 mixed gas, resist contacts oxidation, lead to low contact resistance

● Compact body, space and weight saving

● With Magnetic Blow-out Technology, Realize Zero Arc, Assure Use Safety And Reliability

●Full Compliance With RoHS Requirements

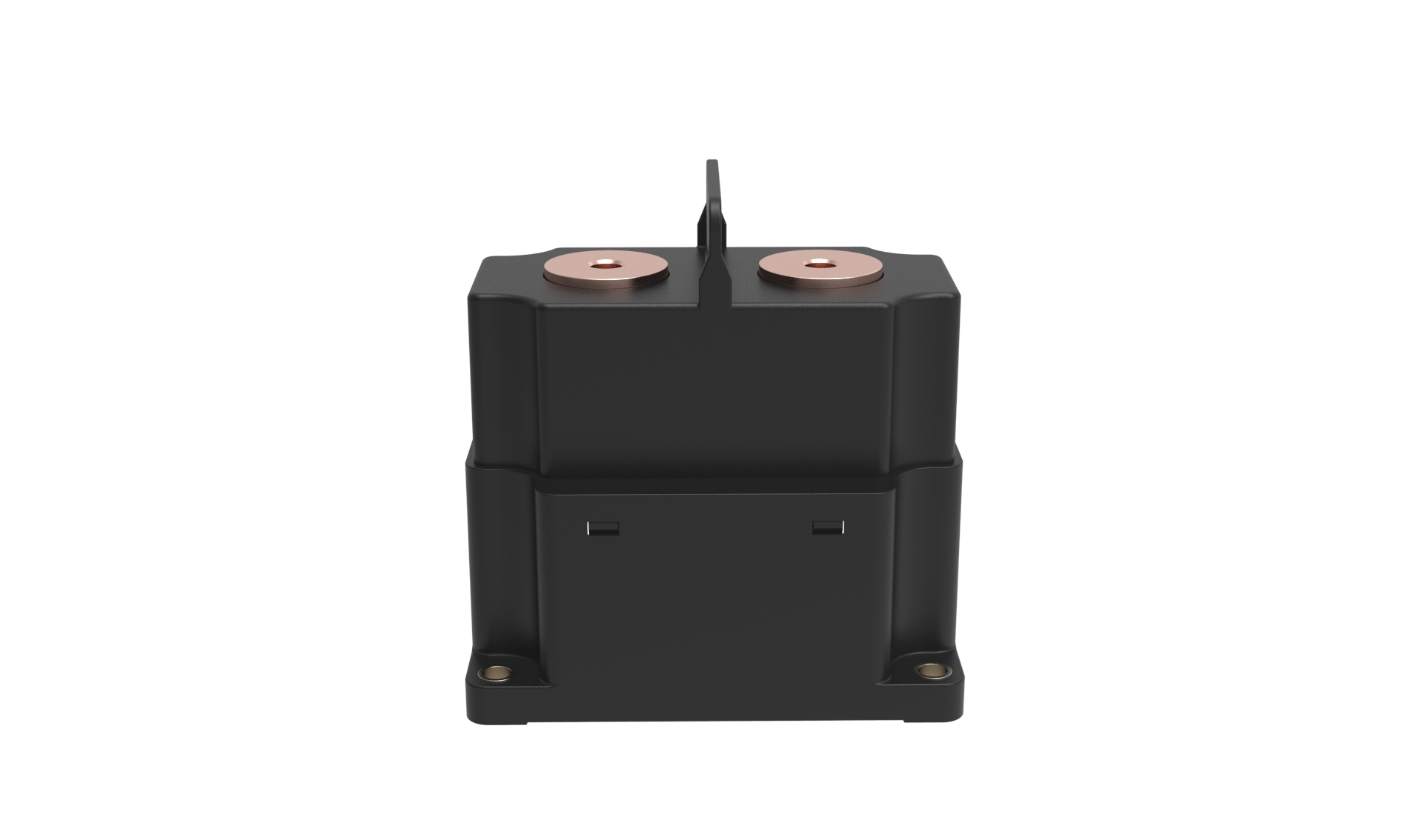

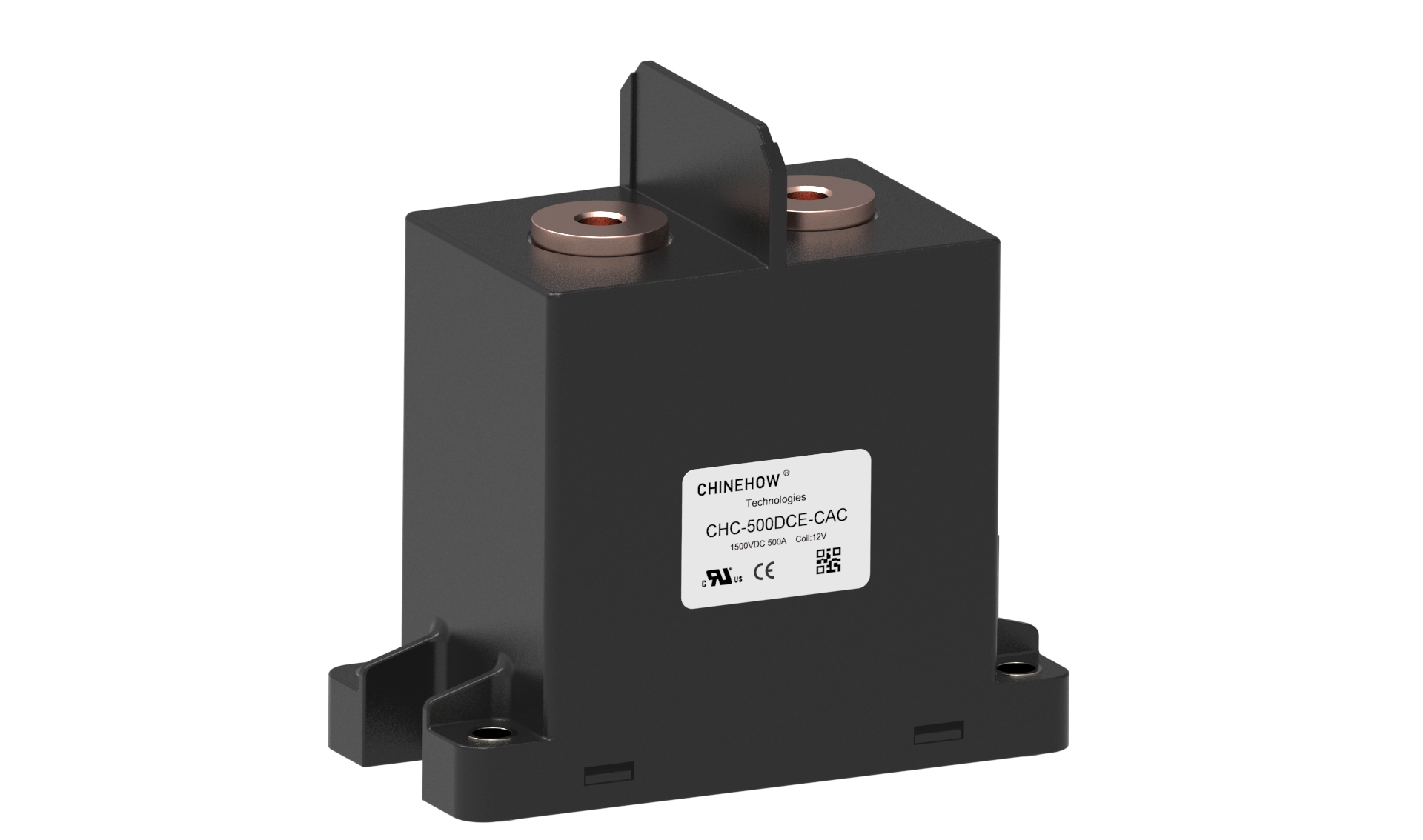

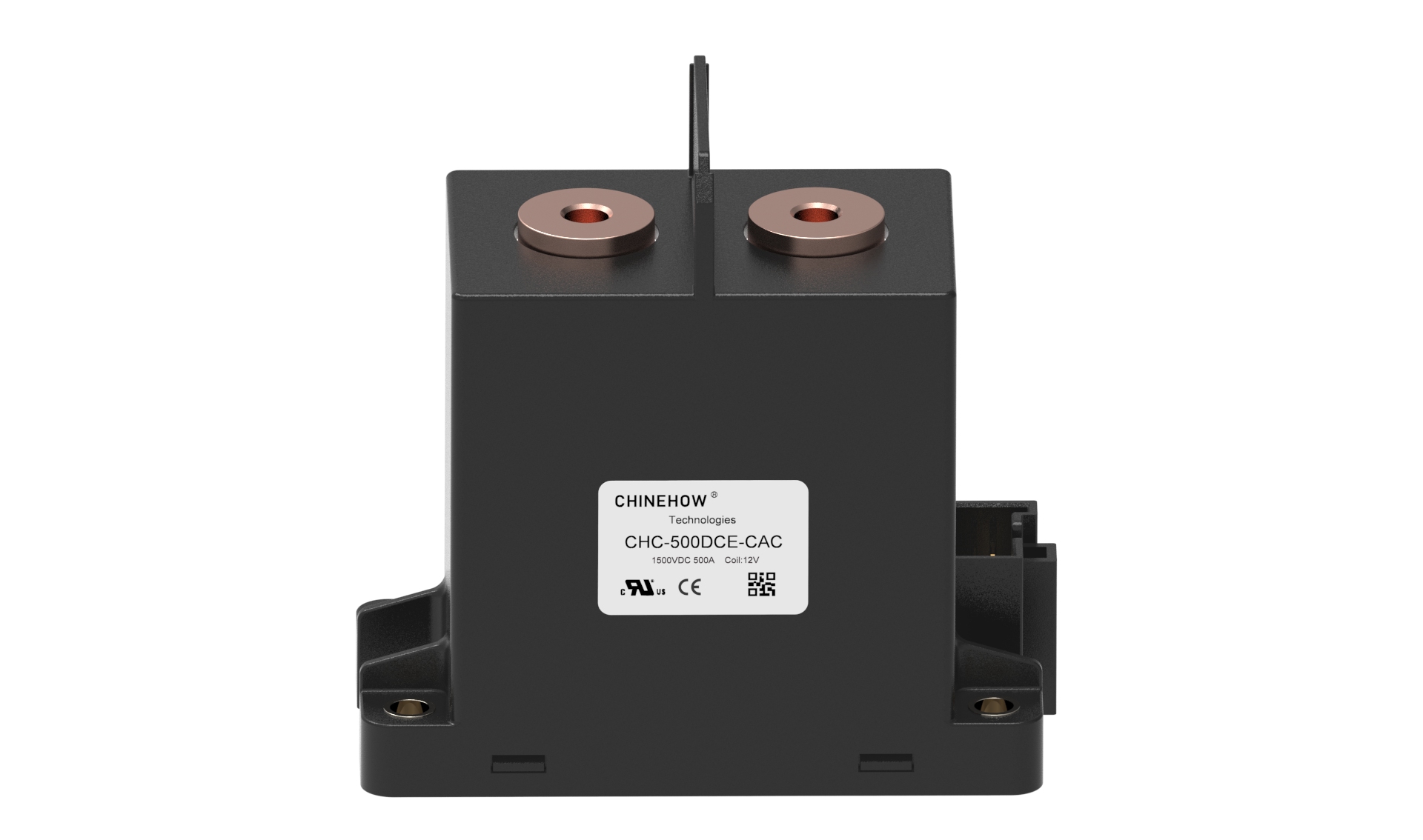

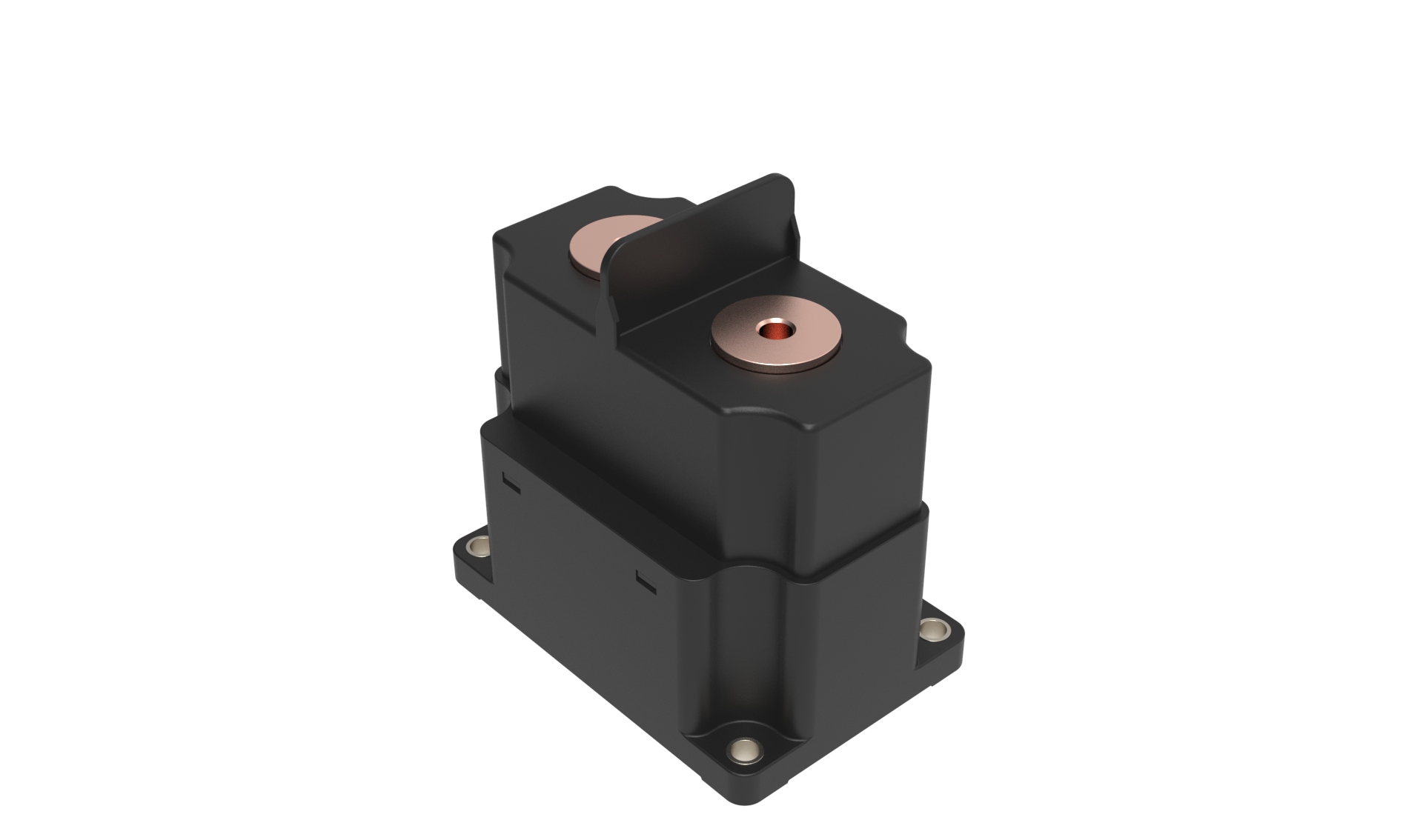

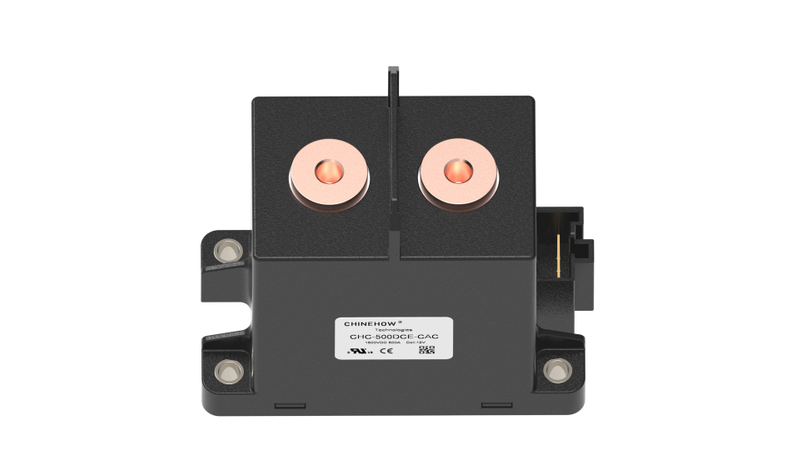

● CCC, CB, CE  certificationCHC-500DCE-CAC.96CHC-500DCE-CAC.95CHC-500DCE-CAC.94CHC-500DCP-CAC.108CHC-500DCP-CAC.107

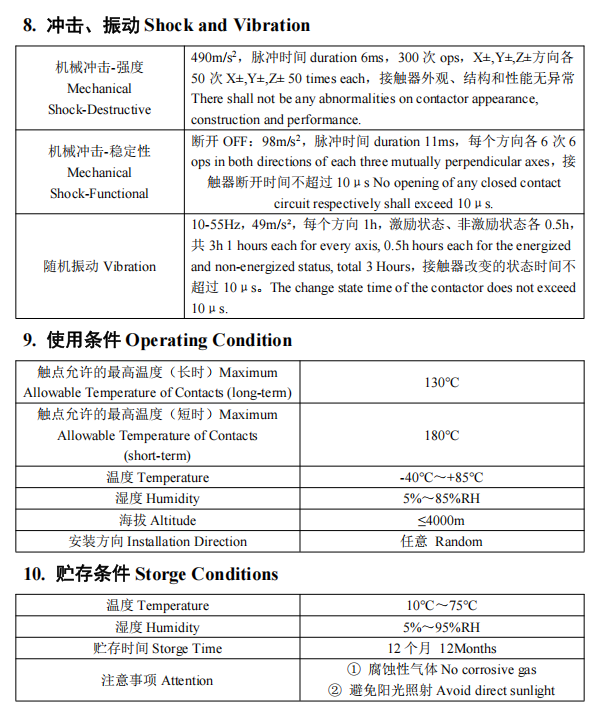

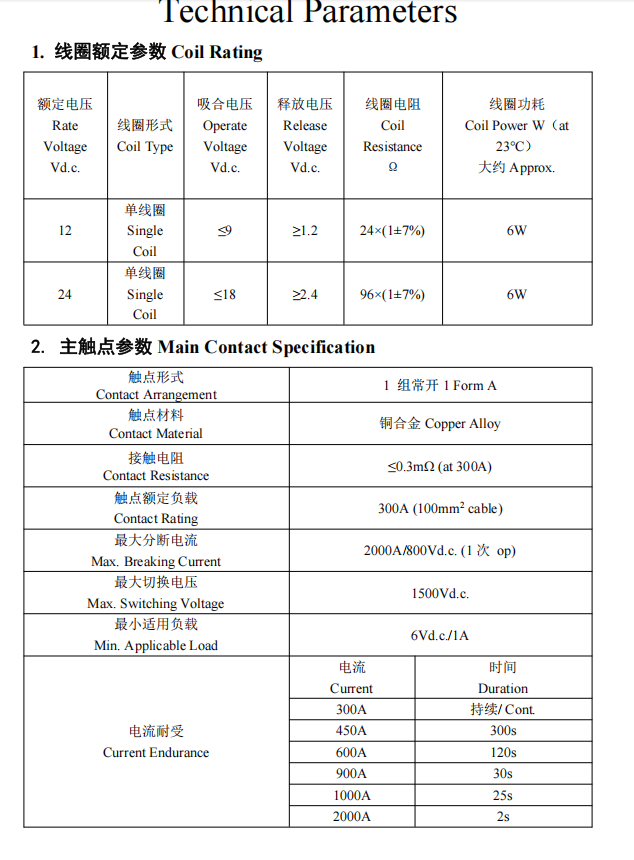

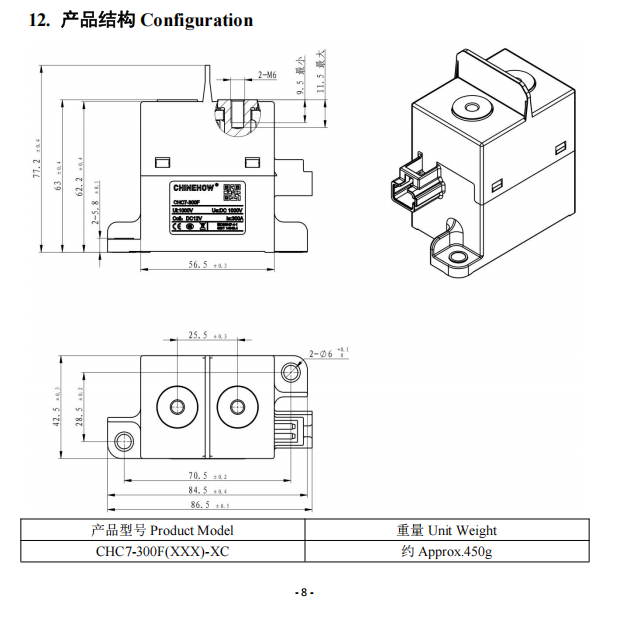

CHC-300-1CHC-300-2CHC-300-3CHC-300-4CHC-300-5CHC-300-6CHC-300-7
