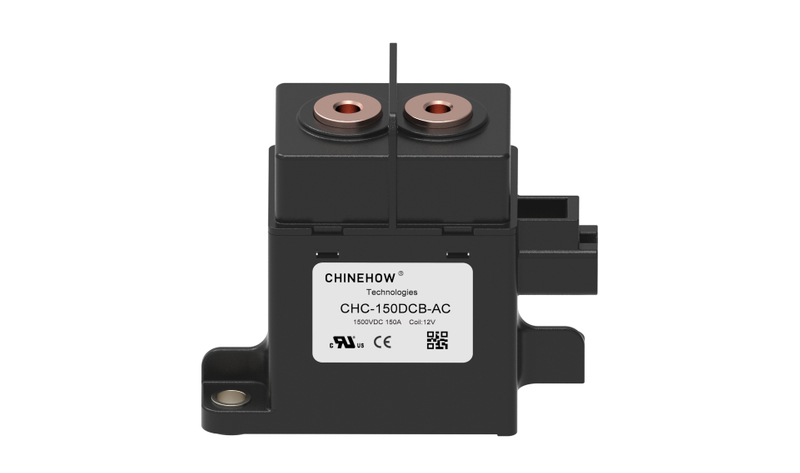

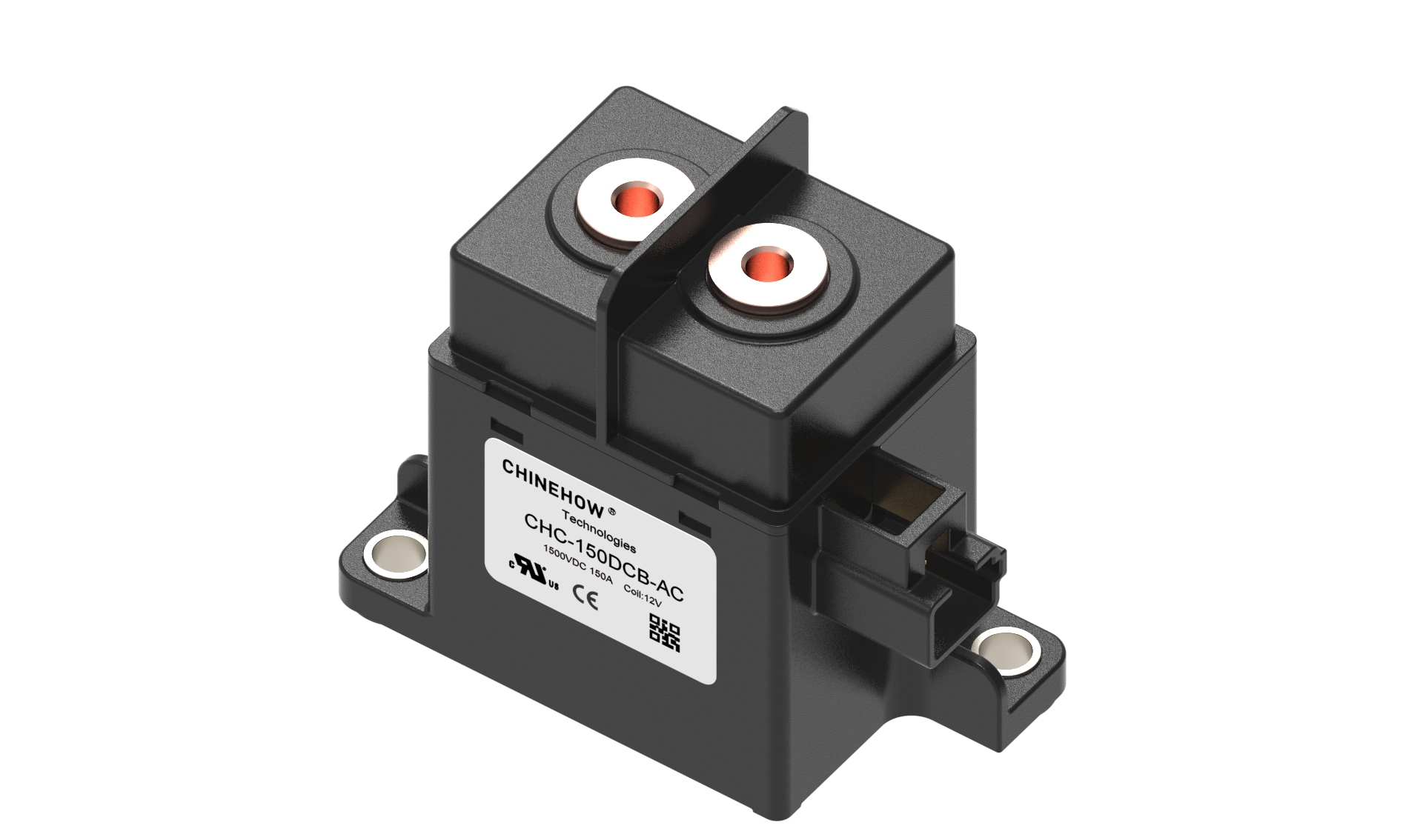

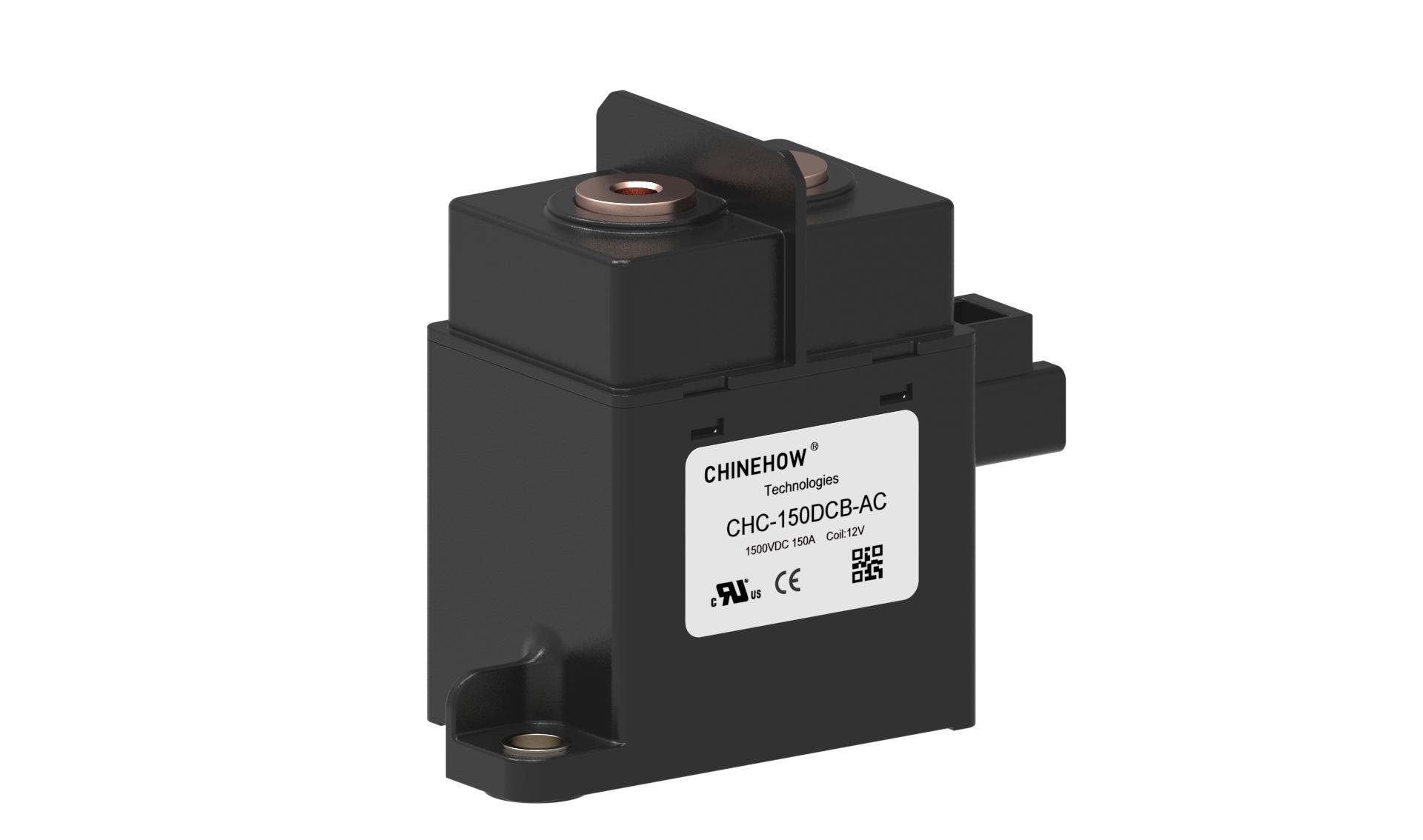

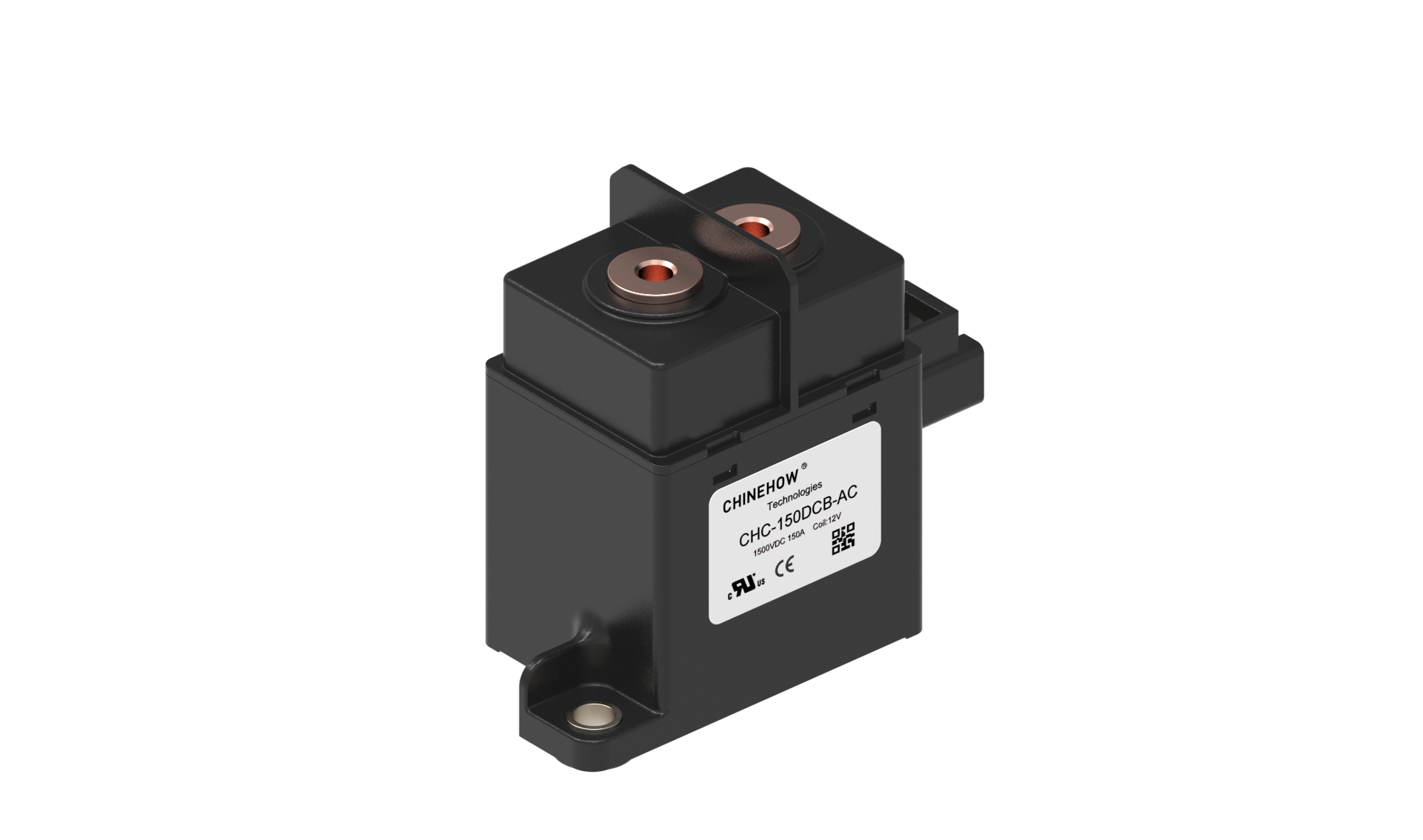

CHC-150 150A High Voltage DC Contactor Original Automotive Contactor Relay 450/800/1000/1500VDC Ceramic Sealed Relay CE

Main Circuit Rating Current:              150A
Place of Origin:                                   ZHE
Electricity Type:                                   DC
Brand Name:                                       CHINEHOW
Model Number:                                  CHC150
Product Name:                                    High Voltage DC Contactor Relay
Type:                                                    DC Contractor
Rated Current:                                     150A
Rated voltage:                                     450V 800V 1000V 1500V
Coil Voltage:                                        12Vdc 24Vdc 48Vdc
Machanical Life ( times):                      200000

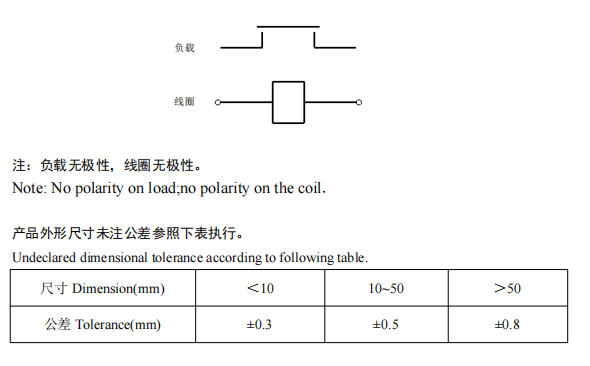

Contact Arrangement:                         SPST-NO

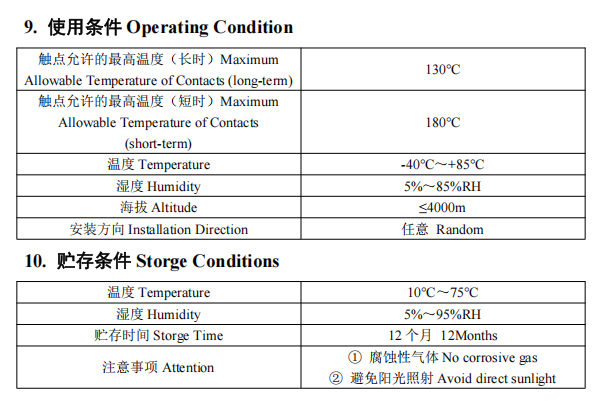

Operate Temperature:                         -40℃~+85℃

Availability:
Quantity:
  • CHC-150

  • CHINEHOW

High voltage DC contactor, also called high voltage DC relay without distinction in the industry, is widely used in electric vehicles (EV) and hybrid electric vehicles (HEV).It is an electromechanical switching device with a coil to generate a magnetic force that mechanically operates an electric contact.

CHC-150DCB-AC.157CHC-150DCB-AC.156CHC-150DCB-AC.158CHC-150-01CHC-150-2CHC-150-3CHC-150-4CHC-150-5CHC-150-6CHC-150-7CHC-150-8
