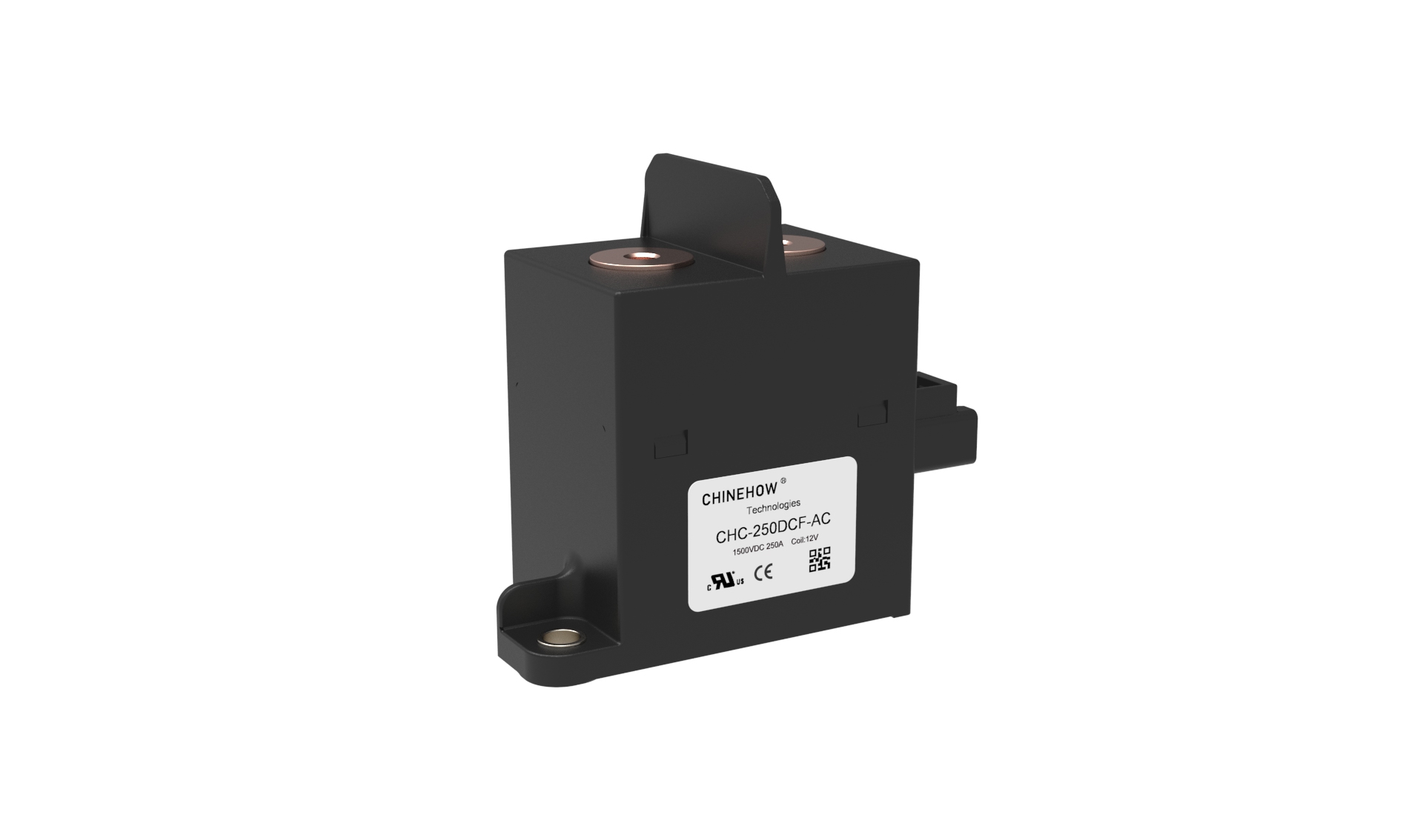

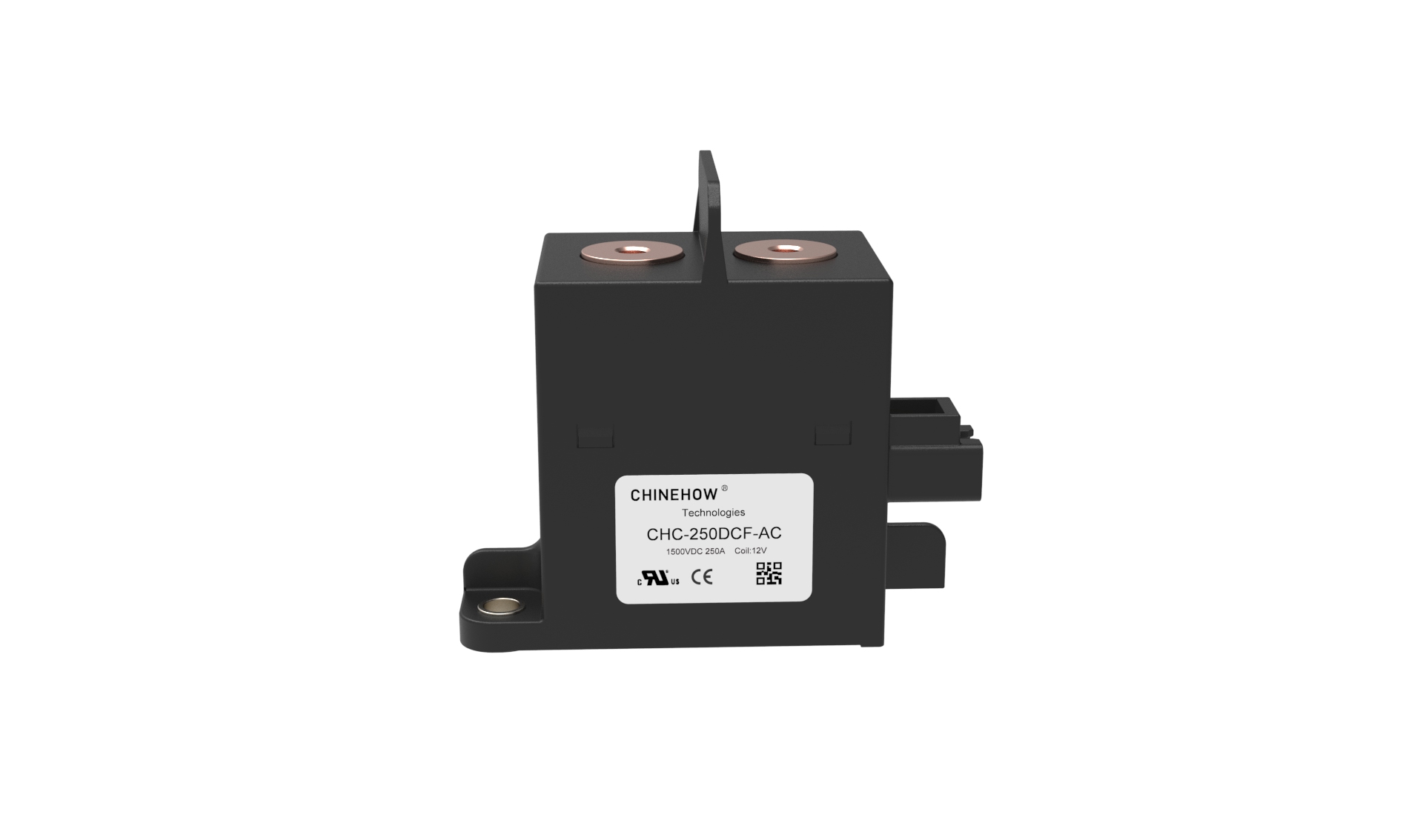

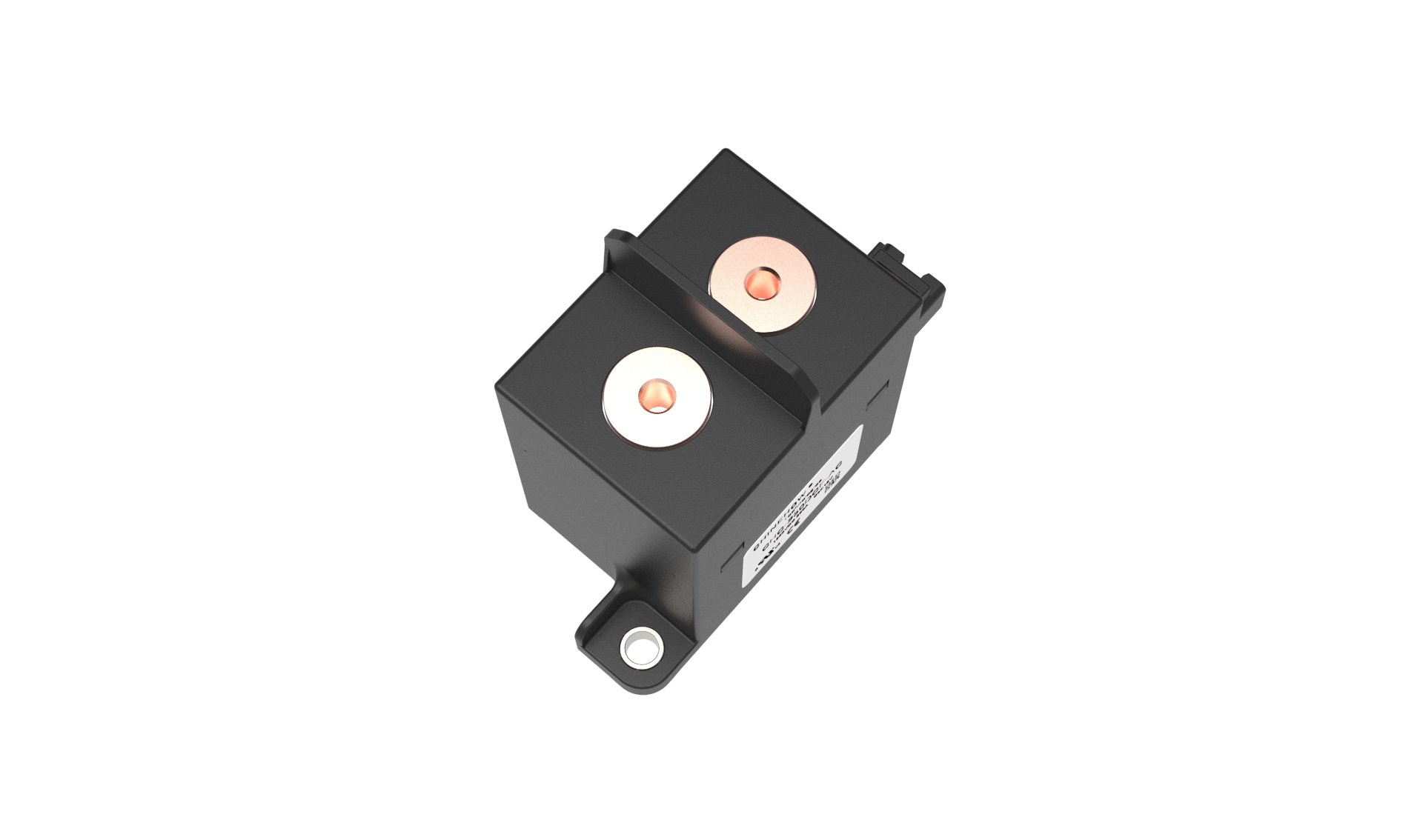

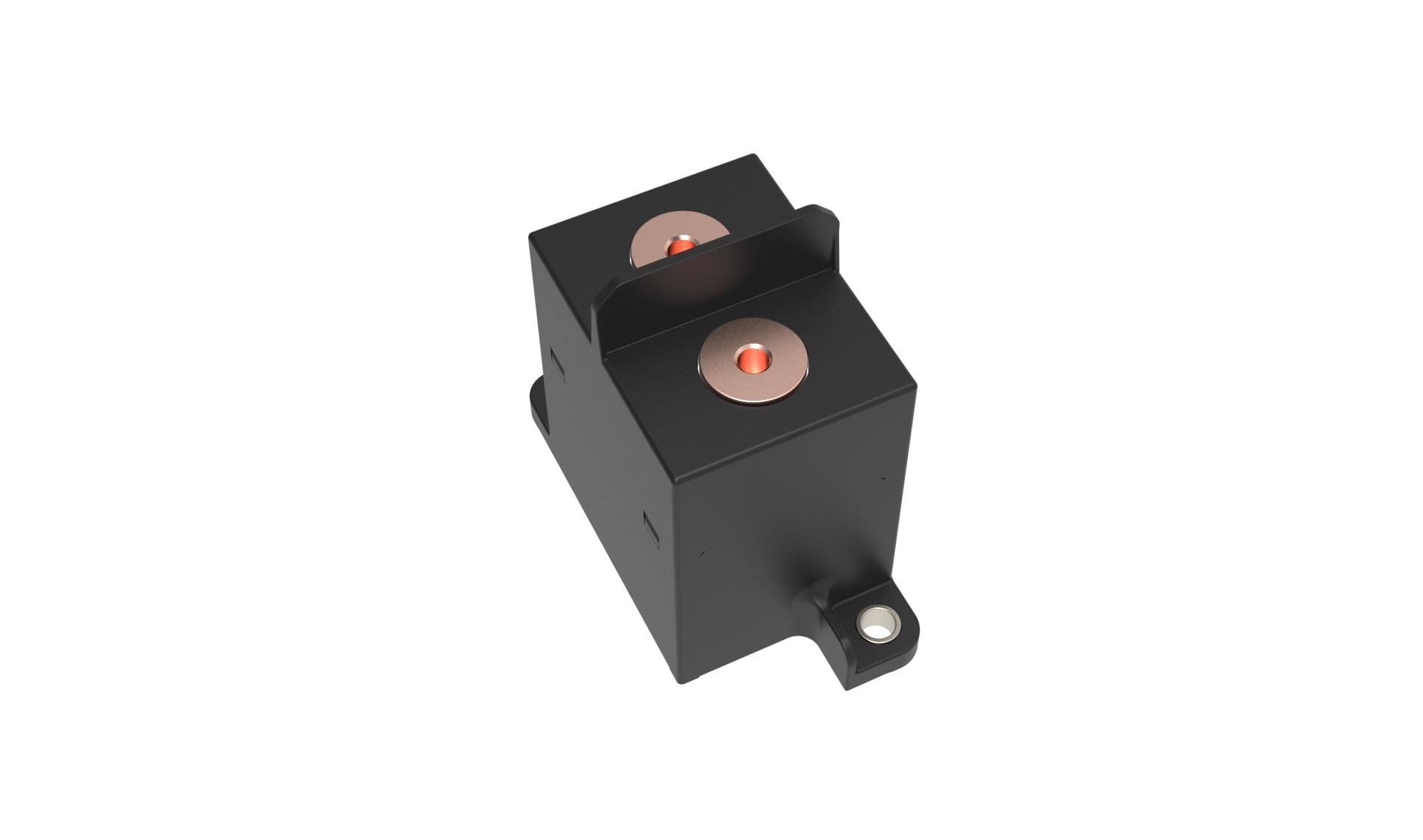

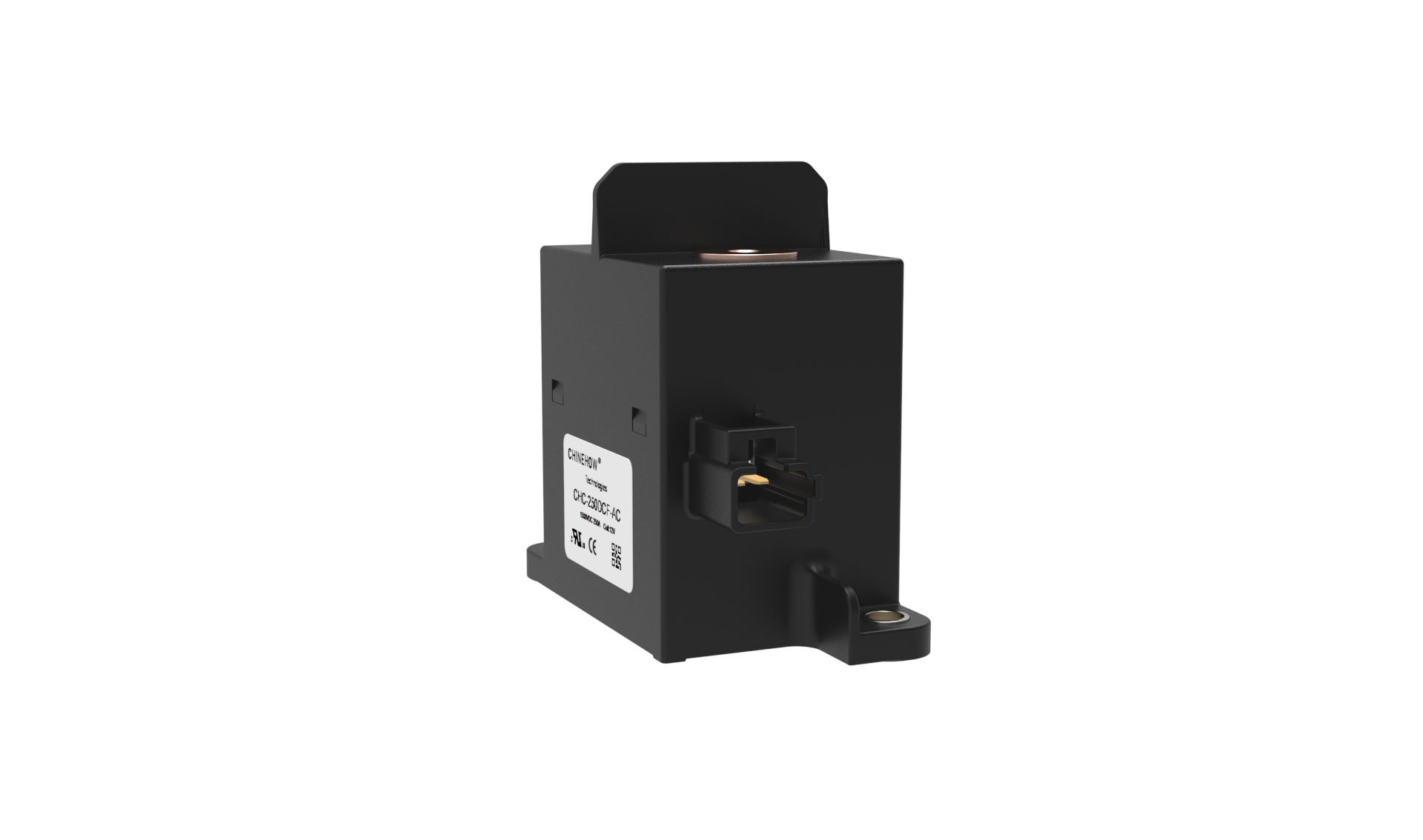

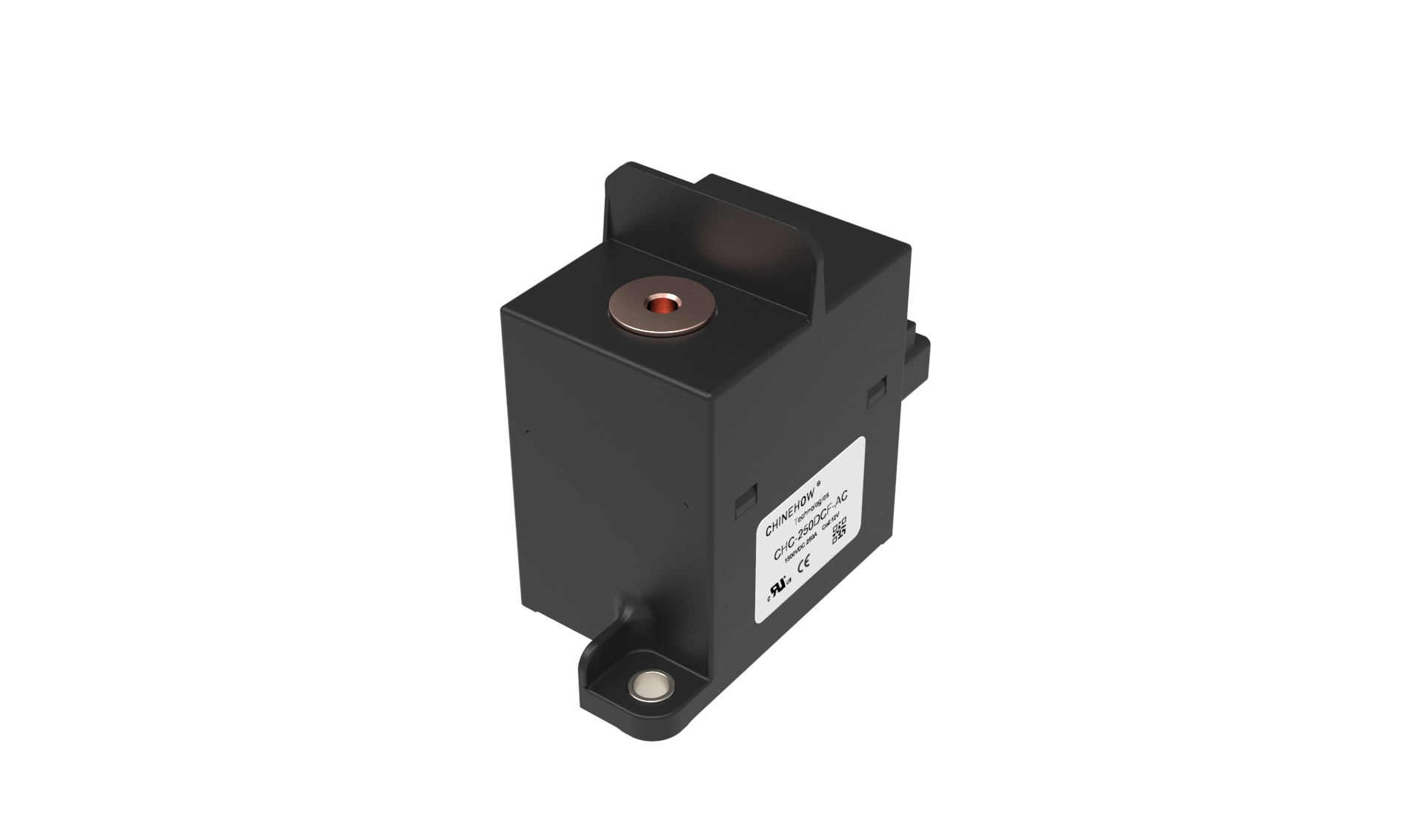

CHC250 CE Certified High Voltage DC Contactor Relay 250A 450/800/1000VDC for EV ESS EV Charging

Phase                   Other
Number of Pole    2
Place of Origin      Zhejiang, China
Brand Name          CHINEHOW
Model Number      CHC250
Rated Current        250A
Load Voltage         450VDC, 800VDC, 1000VDC, 1500VDC
Coil Voltage          12VDC, 24VDC, 48VDC
Main Contact Type    SPST-NO
Auxiliary Contacts     SPST-NO

Availability:
Quantity:
  • CHC250

  • CHINEHOW

  • 8536200000

High voltage DC contactor, also called high voltage DC relay without distinction in the industry, is widely used in electric vehicles (EV) and hybrid electric vehicles (HEV).It is an electromechanical switching device with a coil to generate a magnetic force that mechanically operates an electric contactCHC-250DCF-AC.18CHC-250DCF-AC.17123ontact.
