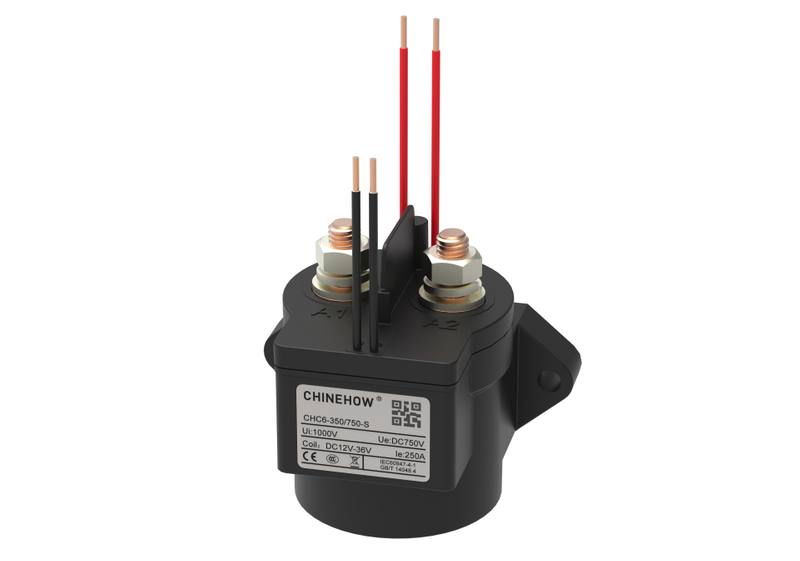

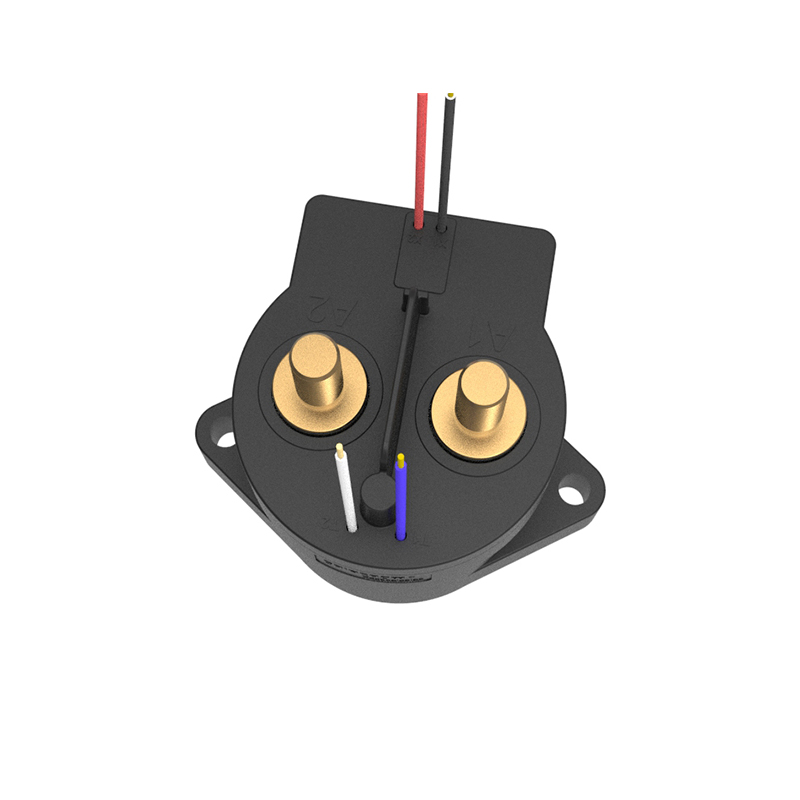

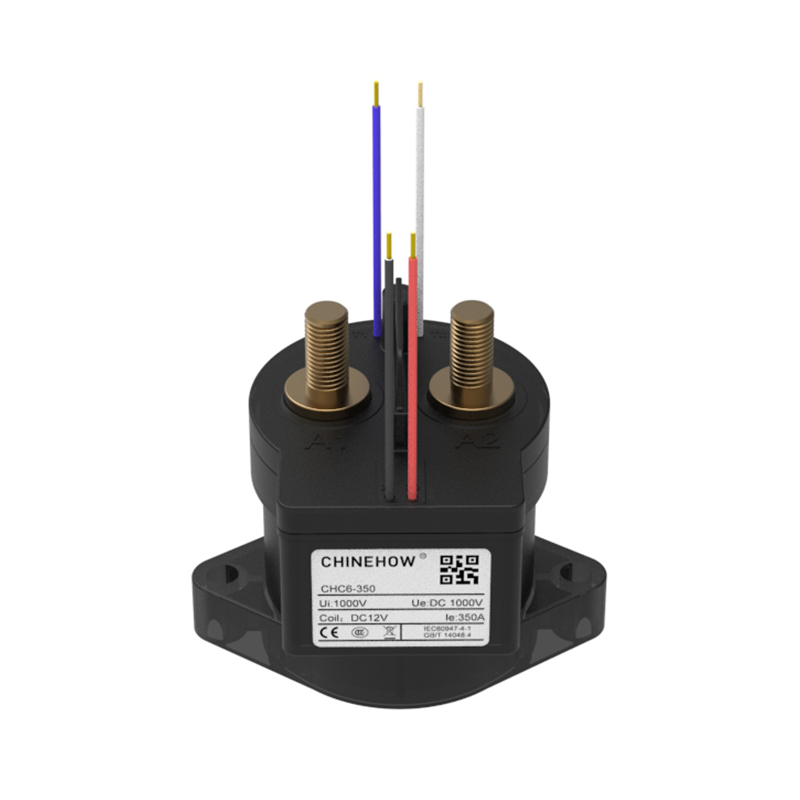

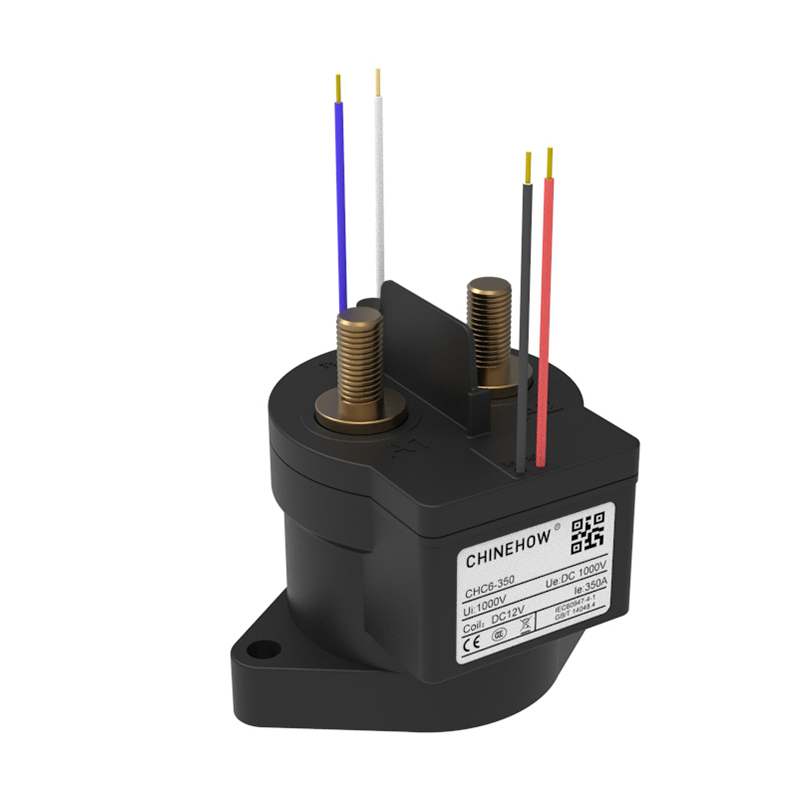

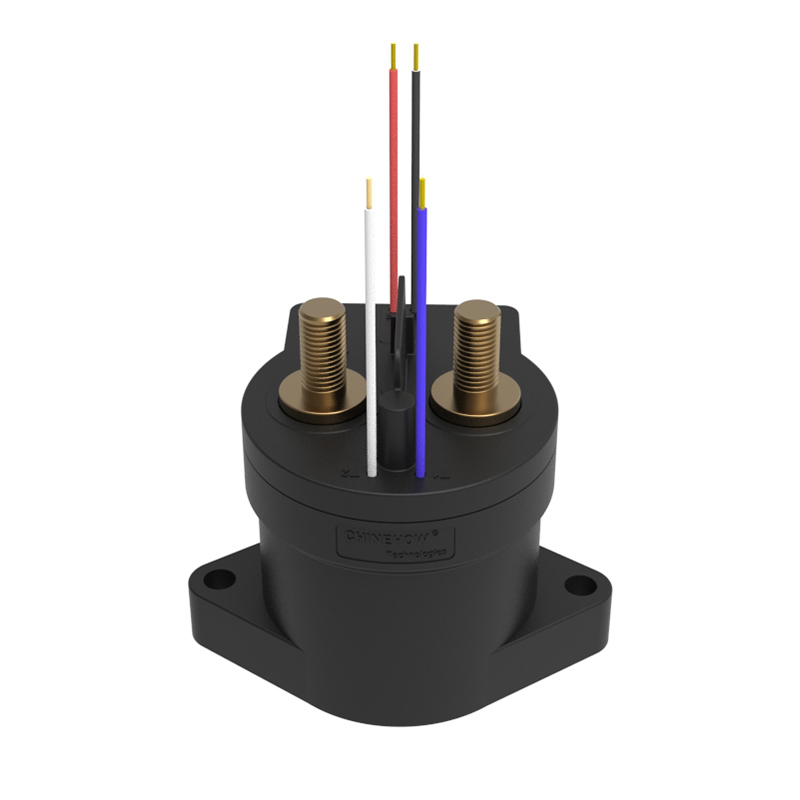

CHC6-350-E-H Epoxy Resin Sealed Type HV DC Contact

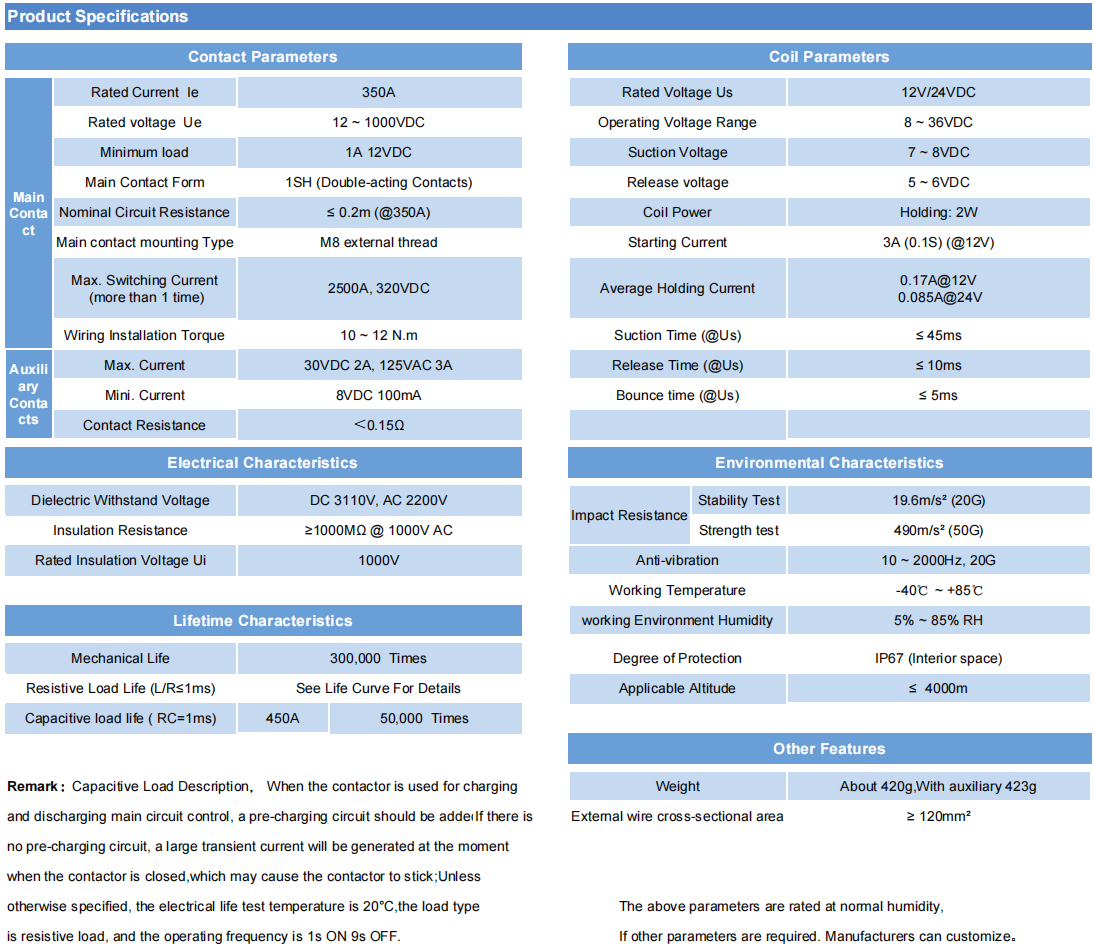

High Control Capacity: Rated voltage 12-1000VDC, Rated current 350A.
Reliable: DC high voltage non-polar design for higher and more reliable breaking capacity, easy and reliable installation/wiring;
Safety: Fully sealed construction with epoxy resin, no oxidation of contacts and coils
No oxidation of contacts or coils, product performance is not affected by the external
environment, No external arcing, working in explosive and hazardous environments;
Energy saving: PWM control technology is used to effectively control the power and action characteristics of the control coil, which is more energy saving.
Environmental Protection:All components comply with the latest EU RoHS environmental requirements.
