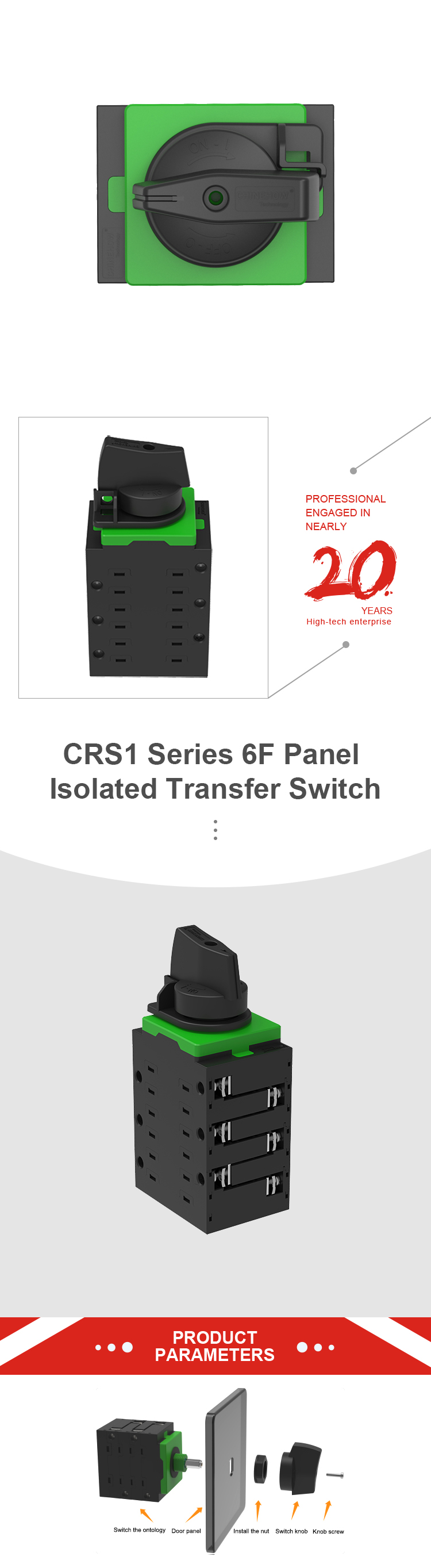

CRS1 Series 6F Panel Isolated Transfer Switch

Use and Scope of Application:
CRS1 series Isolated switch is suitable for rated voltage DC1500V and below,or AC 50/60Hz, Rated operating coltage AC 690V and below,In power systems with rated current of 63A or less,Products can be used for infrequent making and breaking,Play the role of isolating and breaking the line,Can be widely used in construction,telecommunications,metallurgy and other industries,It also hav excellent performance in solving the problem of DC breaking in the current solar photovoltaic system.

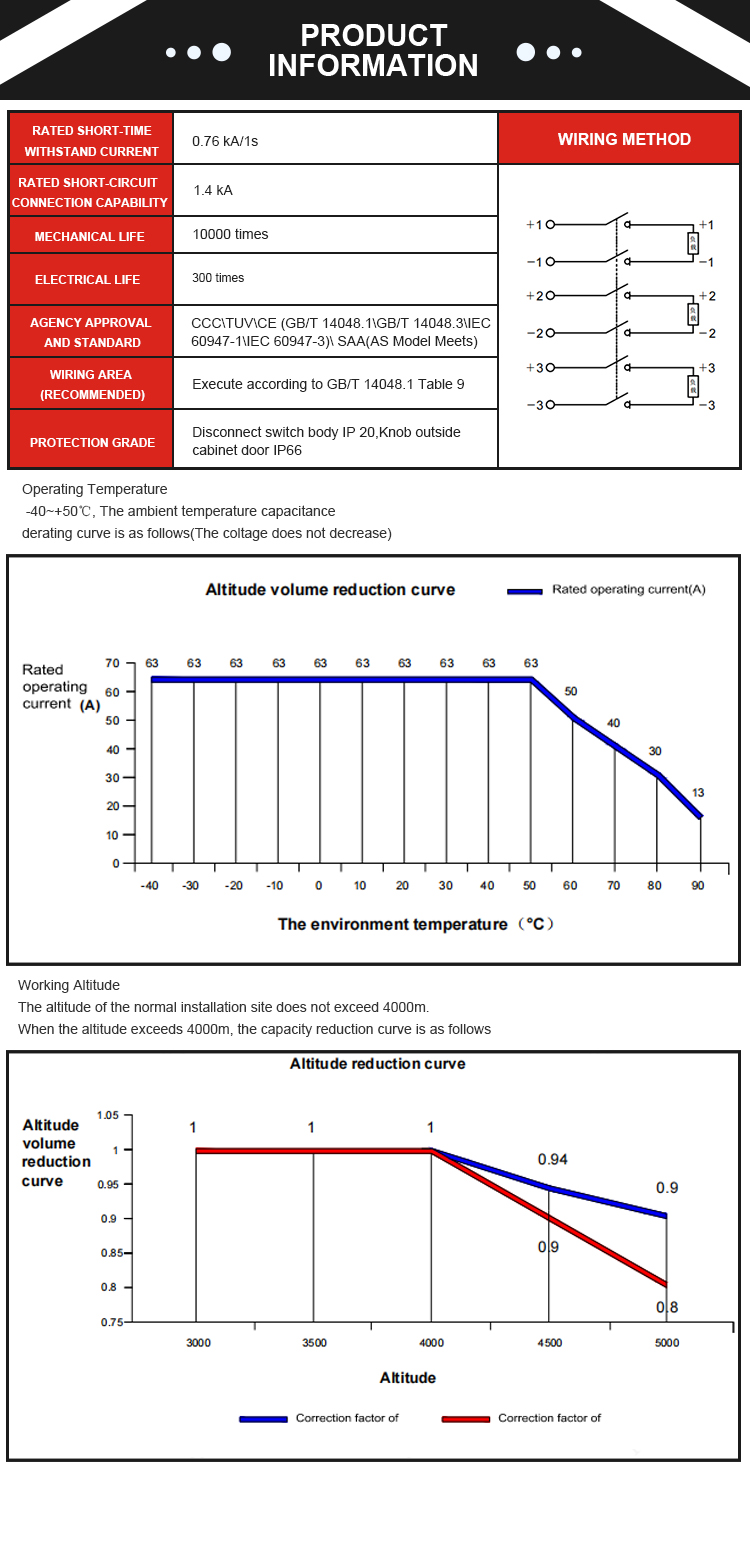

The CRS1 series ambient air temperature range for normal operation is -40~75℃,When the ambient air temperature above +75℃ or below -40℃,The user should negotiate with the manufacturer.The storage temperature ranges from -50 to 80℃.
Design features::
◇ Rotary double power outage technology: when switching, the arc is dispersed to improve the switching ability and the electrical life of products
◇ Knife switch contact structure: the product is connected reliably, and the short-term withstand current is improved
◇ Modular assembly structure: flexible choice of poles
