| Number of Poles | 1,2,3 poles (optional) |
| CURRENT | AC 0.1-50A(1&2&3POLES) |
| MAXIMUM | 250V AC,50/60Hz |
| VOLTAGE COIL | 6V DC,12V DC;120V AC |
| AUXILIARY SWITCH | SPDT;7A,250V AC,7A(Res),28V DC,4A(Ind)0.25A-28V DC,0.1A-125V AC (optional) |
| INSULATION RESISTANCE | ≥100MΩ at 500V DC |
| DIELECTRIC STRENGTH | 1500V,50/60Hz between terminals for eletrical 50/60Hz |
| RESISTANCE/ | The value between line and load terminal under ON status |
| ENDURANCE | Mechanical life is 10k cycles(6 times operation per min.)and electrical life is 6k cycles at rated current and voltage |
| TRIP-FREE | The circuit breaker will tripped inside even if the handle forcibly held in the ON position when overload |
| TRIP INDICETION | Handle is in OFF position when overloaded.For mid-trip,handle is in middle position when overloaded |
| TEMPERATURE OPERATION | -40℃ to +85℃ |
| RECOMMENDED TORQUE | #6-32 or M3 mounting inserts 0.8-1.0 Nm; #8-32 or M4 screw terminals 1.4-1.7 Nm; #10-32 or M5 screw terminals 1.7-2.3 Nm; #1/4-20 or M6 screw terminals 3.4-4.0 Nm |
| MAXIMUM POLES | 3 Poles |
| MOUNTING TYPE | Snap-in,screw-in (optional) |
| TERMINALS | Push-in(Q.C) , upturning,screw-in,bus screw-in (optional) |
| ACTUATOR | paddle,baton,push-pull,push to reset button and color,legend can be customized (optional) |
| COLOR OF CASE | black,grey(optional) |
| STANDARD | EN60934,UL1077,GB17701,UL489A |
| Quantity: | |
|---|---|

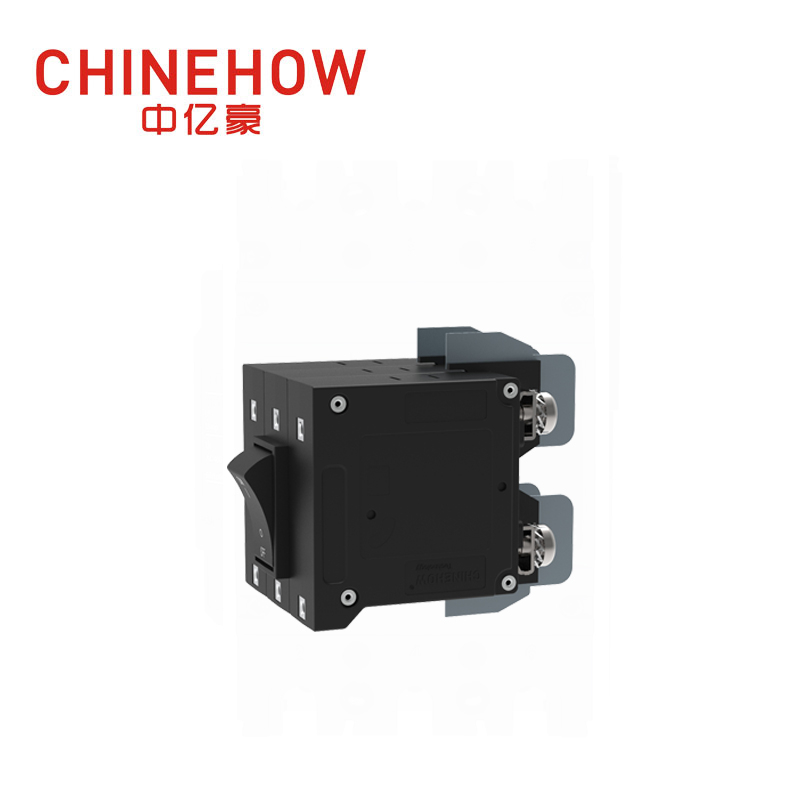

CVP-TH
