Reliable electrical protection in industrial and commercial applications depends on the instantaneous interruption of short-circuit currents before catastrophic thermal damage occurs. Specifying the wrong circuit protection mechanism leads to severe operational issues. Misunderstanding how specific breaker types respond to inrush currents and ambient temperatures causes nuisance tripping, equipment degradation, or compliance failures during safety inspections. Evaluating whether a pure magnetic, thermal-magnetic, or hydraulic-magnetic circuit breaker is appropriate requires a precise understanding of their internal electromechanical operations, trip curves, and environmental limitations. You must match the exact breaker characteristics to the load profile. A magnetic circuit breaker operates as the primary defense line against these severe electrical faults. It utilizes an internal electromagnet to detect dangerous current spikes and physically break the circuit in milliseconds.
Instantaneous Fault Clearing: Magnetic circuit breakers utilize a solenoid coil to concentrate and amplify a magnetic field proportional to the load current, enabling immediate tripping during severe overcurrents or short circuits.
Application-Specific Variations: While pure magnetic breakers offer instantaneous protection, thermal-magnetic and hydraulic-magnetic variants introduce necessary time delays to accommodate normal motor or transformer inrush currents.
Environmental Stability: Hydraulic-magnetic breakers operate independently of ambient temperature, making them superior for extreme environments compared to temperature-sensitive thermal-magnetic alternatives.
Specification Criteria: Proper selection requires matching the breaker’s trip curve and internal mechanism to the specific load profile, operating environment, and enclosure constraints (e.g., DIN rail mounting in control enclosures).
Table of Contents

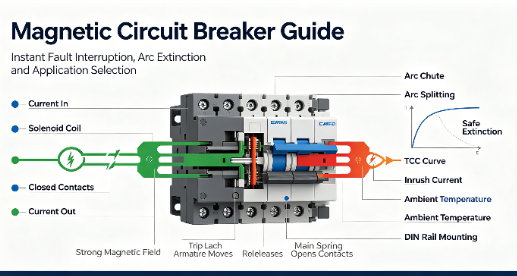

Engineers must understand the exact sequence of operation and internal current path to predict how a breaker will behave under specific fault conditions. A breaker is not a simple on-off switch. It is a highly calibrated electromechanical device designed to monitor current flow continuously. Understanding the internal physics helps you troubleshoot nuisance trips and verify protection coordination on the factory floor.

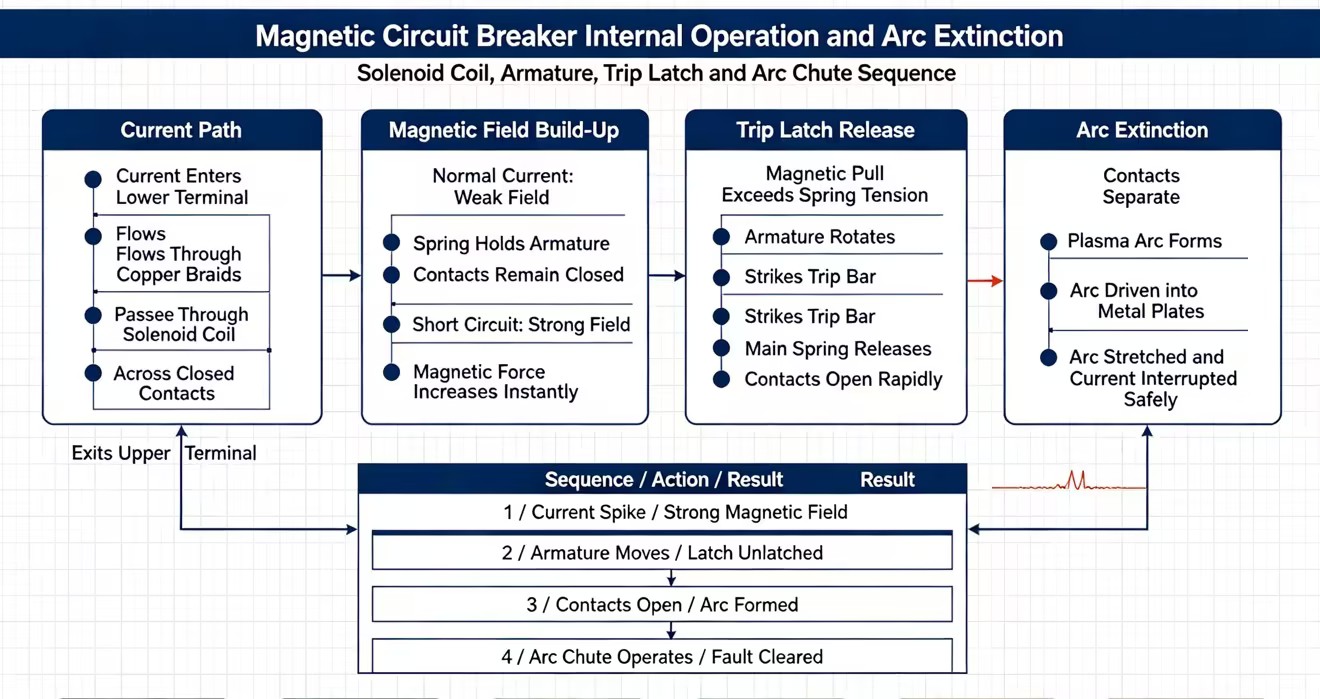

Current flows through the breaker’s internal path and passes through the magnetic coil. Under normal conditions, the magnetic force is not strong enough to move the trip mechanism, so the circuit remains closed. The coil design concentrates the magnetic field, allowing the breaker to detect sudden current increases quickly.
When a short circuit occurs, the current rises sharply and creates a much stronger magnetic field. This force activates the trip mechanism and opens the contacts to stop current flow. The breaker must be correctly rated to handle the fault energy and safely interrupt the circuit.
A predetermined overcurrent level creates enough magnetic force to attract a hinged metal armature. This is the mechanical threshold of the breaker. The manufacturer calibrates the distance between the armature and the electromagnet. They also calibrate the tension of the retaining spring. When the magnetic pull exceeds the spring tension, the armature moves.
The movement of the armature initiates the unlatching sequence. The armature strikes a trip bar or latching sear. This action releases the stored mechanical energy in the main operating spring. The spring-loaded contact mechanism snaps open rapidly. The mechanical linkage is designed to be trip-free. This means you cannot hold the breaker closed against a fault by physically forcing the handle to the ON position. The internal mechanism will still unlatch and open the contacts.
Response time metrics for instantaneous tripping are typically measured in milliseconds. The goal is shutting down the circuit immediately when the current becomes too powerful. Fast clearing times prevent downstream cables from melting. They also protect sensitive electronic components from catastrophic voltage and current surges. A standard Magnetic Circuit Breaker clears a dead short in less than one AC cycle.
The physical separation of the lower and upper terminals breaks the normal current path. However, electrical current resists interruption. As the contacts pull apart, the high voltage ionizes the air between them. This creates a superheated plasma arc. The arc allows current to continue flowing momentarily even though the physical metal contacts no longer touch. Temperatures inside this arc can exceed 5,000 degrees Celsius, enough to vaporize standard metals.
Arc chutes and arc dividers play a critical role in safely dissipating this electrical arc. The magnetic field generated by the fault current pushes the arc away from the contacts. It forces the arc upward into a series of parallel metal plates. These plates stretch, cool, and divide the arc into smaller segments. The arc quickly loses its conductive energy and extinguishes, completing the circuit interruption safely.
To ensure reliable arc extinction, field technicians follow these specific practices:
Mount the breaker in the exact orientation specified by the manufacturer, as gravity and thermal dynamics affect arc venting.
Maintain adequate physical clearance above the breaker vents to allow ionized gases to escape without causing a phase-to-phase flashover.
Inspect the exterior housing for soot or discoloration after a major fault, which indicates the arc chutes absorbed significant energy.
Verify the interrupting rating matches the available fault current at the specific panel location before applying power.
Pure magnetic breakers are rarely used in isolation for general loads. Most industrial and commercial applications require a combination of overload and short-circuit protection. Understanding the hybrid variations is critical for accurate specification. Selecting the wrong variation leaves equipment vulnerable to sustained low-level overloads or causes frustrating nuisance trips during equipment startup.
Pure magnetic breakers provide immediate protection against short circuits. They do not use thermal elements or time delays, so they trip as soon as the current exceeds the magnetic threshold. They are commonly used for sensitive electronic equipment and motor control systems where short-circuit protection is handled separately from overload protection.
Thermal magnetic breakers combine overload and short-circuit protection in one device. The thermal element uses a bimetal strip to detect long-term overloads, while the magnetic coil responds instantly to short circuits. They are widely used in commercial panels, HVAC systems, and general electrical applications where stable protection is required.
Hydraulic magnetic breakers use a magnetic coil, moving core, spring, and fluid chamber to control the trip response. The fluid provides an adjustable delay that allows normal startup currents from motors or transformers without unwanted trips. During severe short circuits, the magnetic force acts immediately to disconnect the circuit and protect equipment.
Assessing breaker features against required operational outcomes, scalability, and safety compliance ensures long-term reliability. You cannot select a breaker based on amperage alone. You must evaluate how the internal mechanism interacts with the specific load characteristics and the physical environment where the panel is installed.
Analyzing manufacturer trip curves is a mandatory step in breaker selection. Time-Current Characteristic (TCC) curves map the exact relationship between current magnitude and trip time. The horizontal axis represents the current as a multiple of the breaker's continuous rating. The vertical axis represents the time it takes to trip. Engineers use these curves to ensure the breaker holds during normal startup but trips before cable damage occurs.
You must differentiate between resistive loads and inductive loads. Resistive loads, like heaters and incandescent lighting, have minimal inrush current. They can use breakers with fast trip curves. Inductive loads, like motors and transformers, draw massive current spikes during startup. These loads require breakers with specific time delays to prevent nuisance tripping. Selecting a high-inrush delay curve allows the motor to reach operating speed without dropping the circuit.
Trip Curve Type | Magnetic Trip Threshold | Typical Application | Inrush Tolerance |
|---|---|---|---|
Curve B | 3 to 5 times rated current | Resistive loads, PLCs, control circuits | Low |
Curve C | 5 to 10 times rated current | General lighting, small motors | Moderate |
Curve D | 10 to 20 times rated current | Transformers, heavy industrial motors | High |
Curve K | 8 to 12 times rated current | High-inrush inductive loads | High |
Curve Z | 2 to 3 times rated current | Highly sensitive semiconductors | Very Low |
Ambient temperature can affect circuit breaker accuracy. Thermal-magnetic breakers rely on heat to trigger overload protection, so high temperatures may cause earlier trips, while cold environments may delay protection. Hydraulic-magnetic breakers use magnetic current sensing instead of heat, providing more stable trip performance across a wider temperature range.
Proper installation space ensures safe and reliable breaker operation. Engineers should consider breaker size, DIN rail compatibility, wiring space, and enclosure layout before installation. Even temperature-stable hydraulic-magnetic breakers require proper ventilation around other components to prevent overheating and maintain long-term system reliability.
The fundamental working principle of a magnetic circuit breaker—utilizing an electromagnet to instantly break a circuit during a fault—is foundational to electrical safety. The rapid separation of contacts and the effective extinguishing of the resulting arc prevent catastrophic equipment damage. However, pure magnetic breakers are highly specialized and require careful coordination with separate overload relays.
For general applications, thermal-magnetic breakers provide reliable dual protection against both overloads and short circuits. For environments with extreme temperature variations or loads requiring precise inrush current management, hydraulic-magnetic breakers stand out as the superior engineering choice. They eliminate temperature derating variables and provide highly customizable time delays.
Engineers should take the following next steps when specifying circuit protection:
Review the specific Time-Current Characteristic curves for all anticipated inductive loads to prevent startup nuisance tripping.
Calculate ambient temperature variables for the final installation environment and apply necessary derating factors if using thermal-magnetic devices.
Verify enclosure constraints, including DIN rail compatibility and panel depth, against the physical dimensions of the selected breaker.
Consult manufacturer specifications to confirm the short-circuit interrupting rating exceeds the maximum available fault current at the panel location.
A: Thermal breakers use a heating bimetallic strip to provide delayed protection against gradual overloads. Magnetic breakers use an internal electromagnet to provide instantaneous protection against severe short circuits. Most modern commercial and industrial breakers combine both mechanisms into a single thermal-magnetic unit to offer comprehensive protection across all fault types.
A: The magnetic trip mechanism operates almost instantaneously. During a severe short circuit, the magnetic field becomes strong enough to unlatch the armature within a few milliseconds. This rapid response typically clears the fault in less than one AC cycle, preventing thermal damage to downstream wiring and sensitive equipment.
A: While the fundamental magnetic principle applies to both alternating and direct current, the internal mechanisms differ. DC arcs are much harder to extinguish because the voltage does not cross zero. AC and DC breakers feature different coil designs and arc chute configurations. They are not universally interchangeable and must be rated specifically for the application.
A: The trip point in a hydraulic-magnetic breaker is determined entirely by the magnetic flux generated by the load current and the mechanical resistance of the fluid dashpot. Neither the magnetic field strength nor the engineered viscosity of the silicone fluid is significantly altered by standard ambient temperature changes, ensuring consistent performance.
A: A slight hum can be normal due to the alternating current generating a fluctuating magnetic field in the coil. However, excessive or loud buzzing often indicates an impending trip condition, a loose internal armature, or a circuit that is operating dangerously close to its maximum overload threshold.
A: Verifying the instantaneous magnetic trip requires specialized primary injection testing equipment. This equipment safely simulates a high-current short-circuit fault to measure the exact millisecond response time of the breaker. Because of the high currents involved, this testing should only be performed by qualified electrical testing personnel.
