When you're choosing a miniature circuit breaker, you're working through several factors at once: current rating, pole count, breaking capacity, and trip curve. If you get one wrong, electrical systems will experience nuisance trips that may cause costly downtime.
This is why, in this article, we’ll walk you through how to choose a miniature circuit breaker by considering the current, poles, and breaking capacity. This will help you ensure more reliable protection and safer, more stable electrical operation.
A Miniature Circuit Breaker (MCB) is an auto-switching unit that ensures protection against overloads and short circuits.
Normally, current flows freely through the MCB. When the current surpasses the rated value, a bimetallic strip within the MCB heats up, bends, and activates the latch in order to disconnect the circuit. This process is known as thermal tripping, and it takes care of overloads.
When a short circuit happens, there is a huge and quick flow of current that is detected by a magnetic solenoid, which trips the MCB immediately within a few milliseconds. The MCB is then reset once the problem has been sorted out.
The rated current (In) is the maximum current that the circuit breaker is expected to carry without tripping during its normal operation. It is the very first thing that you need to verify in your calculations, and it is also the most miscalculated one because the mistake will not be in the mathematics but rather in the understanding of the concept.
Remember, you are not sizing for the load but the cable. The circuit breaker should trip before the cable gets overloaded; hence, the current rating should be equal to or less than the ampacity of the cable but capable of clearing the load.
When you calculate the rating, apply these principles:
Calculate actual load current: don't rely on nameplate ratings alone, since diversity and demand factors change the real draw on a circuit
Match the rating to conductor size: a breaker rated higher than the cable can carry defeats the purpose of installing one
Leave headroom: sizing right at the calculated maximum invites nuisance tripping the moment load fluctuates
Account for ambient temperature: you'll find MCBs typically calibrated at 30°C, and you should apply derating in hotter panels or enclosures
The number of poles decides the number of live conductors that the breaker will switch/protect at one go. If this is incorrect, either a live conductor will remain unprotected or too many breakers will be specified when not required for the circuit.
Single-pole (1P): This is used to transfer a single conductor line that is live, and this is the usual specification of single-phase light socket circuits in residential and light commercial installations.
Double-pole (2P or 1P+N): This is used to switch a live line and a neutral or two line conductors in a split-phase arrangement. This is specified wherever it is necessary to isolate the neutral in certain appliance circuits or in some code-required cases.
Three-pole (3P): This protects a three-phase circuit without switching the neutral. This is the normal specification in three-phase motors and other three-phase installations.
Four-pole (4P or 3P+N): This is for a three-phase circuit with neutral switching also. This is the specification when it is desired to disconnect all live conductors, such as in generator changeover applications or certain data center feeds.
Match the pole count to the number of current-carrying conductors that need protection, not to the number of wires in the conduit. A grounding conductor never counts toward pole selection.

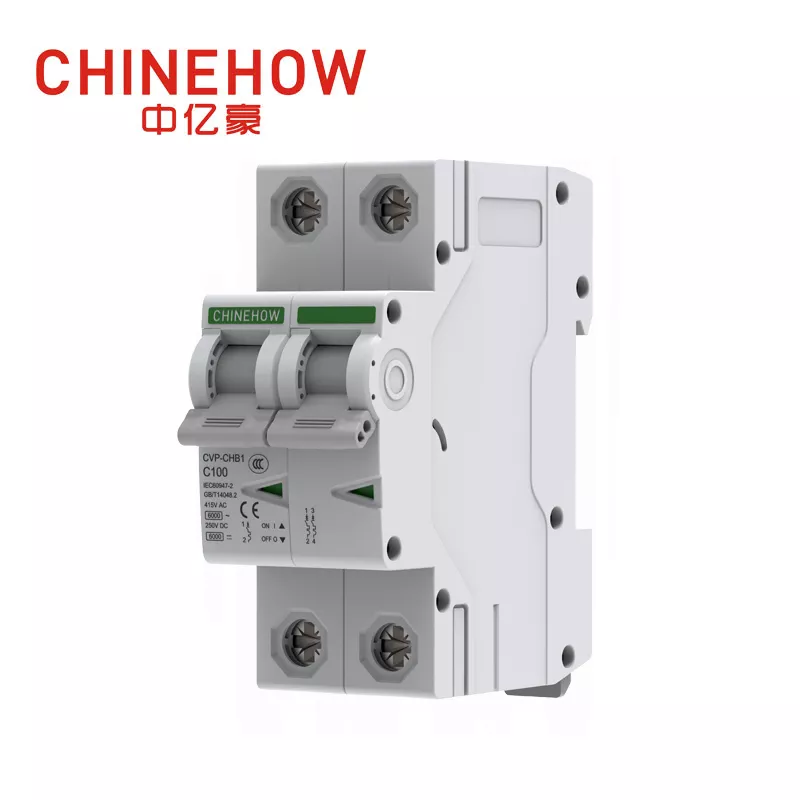

CHINEHOW's CVP-CHB1 IEC series is available across 1P through 4P configurations, so you can source a consistent product line whether you're specifying a single lighting circuit or a full three-phase distribution board.
This is the spec that you are most likely to miss, and the one that will get you into serious trouble if you do. Breaking capacity, given in kA as Icn or Icu, is the largest fault current that the breaker can interrupt without self-destruction.
Remember this point clearly because current rating and breaking capacity are two different concepts and neither of them implies the other. A 32A breaker rated for 6kA breaking capacity and a 32A breaker rated for 10kA will operate under normal conditions exactly alike. The difference will come to the fore during the short-circuit situation, when the prospective fault current at this location may exceed either breaking capacity of the breakers.
What should you do to make the right calculation? First of all, you should calculate the prospective fault current at the breaker location. This current depends on the capacity of transformers, length and impedance of the cables, and distance from the source to the breaker location. So the closer the breaker is to the transformer, the larger the fault current it should withstand.
Apply this rule without exception: breaking capacity must be equal to or greater than the calculated prospective fault current at that point in the system. Not close to it. Equal to or greater than.
The problem with undersizing breaker breaking capacity is obvious. In case of a short circuit, an underrated breaker might not interrupt the fault properly; contacts may weld, the enclosure will break, and the fault energy needs to be dissipated somehow. This particular problem is what all other specifications on this list try to prevent, so make sure that you do this verification rather than assume it.
Current rating tells you how much the breaker carries. Breaking capacity tells you what it can survive. The trip curve tells you how fast it reacts, and you need to get this right to avoid both nuisance trips and delayed protection.
B curve: you will notice this tripping at 3 to 5 times the rated current. It fits resistive loads with low inrush current, including general lighting, heating, and standard residential plugs.
C curve: you will notice this tripping at 5 to 10 times the rated current. It is the default choice for mixed commercial and light industrial loads, in case there is some inductive load but no high inrush current.
D curve: you will notice this tripping 10 to 20 times the rated current. This particular choice is reserved for motors, transformers, and other devices with high inrush current during startup. Using A, B, or C curves on a motor circuit trips every time the motor starts.
If you select the wrong curve, you get one of two failure modes. Either the breaker trips every time equipment starts, which trains operators to reset it and ignore the warning it's giving them, or the breaker reacts too slowly to a genuine fault because you set it up to tolerate a startup surge that never occurs.
When you combine current, poles, breaking capacity, and trip curve, the specification looks different depending on what's connected to the circuit.
Lighting and socket circuits: you will be using 1P breakers in most cases with B or C curves based on the ampacity of the cables, but in almost all instances with 6kA breaking capacity.
Motor and inrush-heavy loads: Motors and circuits with high inrush currents: you will definitely use D-curve breakers, sized in such a way that the long delay equals the rated motor current, and the instantaneous value is high above the expected starting current.
Sensitive electronics and IT/data equipment: in some cases, you will need better overcurrent protection with more coordinated operation with upstream devices because nuisance tripping of this type of load is associated with a higher cost than it would be with a lighting circuit.
Solar PV and battery storage circuits: this category deserves special consideration. These circuits usually have different fault behavior and require specific considerations for your breaker choice, rather than choosing the same device you use for other circuits in your system.
Once you've settled current, poles, breaking capacity, and curve, a handful of secondary factors still influence which breaker you ultimately specify.
Ambient temperature and derating: there’s something else you should consider here, besides what you may have seen described in datasheets before. The rating of a breaker at 30 degrees Celsius means its tripping current will be lower in a warm enclosure. That’s why there are derating tables. Ignore them, and you’ll start noticing trips that appear out of the blue.
Panel space and DIN rail width: this is as much of an engineering issue as it is a physical one. Standard DIN rail widths are relatively universal, but pole count definitely impacts how much space on the rail a breaker occupies, and that becomes an issue when you’re installing the breaker in an already built enclosure.
Mechanical and electrical endurance: mechanical and electrical cycle rating is important where the breaker will need to switch quite often, as opposed to being left untouched for many years.
Accessories and add-ons: auxiliary contacts, shunt trips, and RCBOs complement standard MCB functionality. Make sure to check in advance that the breaker series you want to use has the required accessories available.
You'll see a few patterns repeatedly in field failures and callback reports:
Sizing to the appliance nameplate instead of the circuit and cable: the breaker is protecting the cable, not the appliance being connected to it
Skipping the prospective fault current calculation: thinking that the usual breaking capacity will be enough without actually confirming leads to installing underrated breakers.
Assuming all C-curve breakers behave identically across brands: trip curve tolerances vary, and batch consistency isn't guaranteed just because the label says C curve
Treating certification as a formality: a cheaper import that looks just like the certified one, but was not tested in accordance with IEC/UL standards, can still perform differently under fault conditions
Choosing the right Miniature Circuit Breaker is far from guesswork and should not be considered such. This process is technical, and it has real consequences in terms of safety, lifetime of the equipment, and its reliability. Choose the correct trip curve according to the type of load, make sure that the current rating matches the required demand, check the breaking capacity against available fault currents, and choose the right number of poles.
If you don’t choose a miniature circuit breaker properly, it puts people, property, and equipment at risk. Getting it right means a system that runs reliably for decades. For genuine MCBs and a full range of distribution board products, visit Chinehow to explore our customized electrical solutions.
The current rating of a Miniature Circuit Breaker (MCB) is the maximum normal current it can carry continuously without tripping, while the breaking capacity is the maximum short-circuit fault current it can safely stop without exploding or sustaining permanent damage.
You need 3 poles for a standard three-phase three-wire circuit, and 4 poles if your system includes a neutral wire that requires switching or overcurrent protection.
Standard breaking capacity for residential circuit breakers is typically 6kA to 10kA, while industrial installations require much higher capacities ranging from 25kA to 150kA (or starting at 10kA for light industrial/commercial).
Yes, you can use a C-curve MCB for small to moderate motor circuits, such as water pumps, air conditioners, and fans, because it trips at 5 to 10 times its rated current to tolerate startup surges.
If an MCB's breaking capacity is too low, the breaker fails to safely stop a heavy short-circuit current.
No, a higher current rating is not always safer, especially when it comes to circuit protection devices and wiring. It can lead to overheated wires, equipment damage, and shock severity.
You likely need an RCBO if your circuit lacks upstream earth-leakage protection, as standard MCBs only protect against overloads and short circuits.
