Isolators and circuit breakers are widely used components in power systems, which contribute to maintaining a proper and safe supply of electricity. There are certain differences between isolators and circuit breakers in terms of operation, design, and application.
Knowing the differences between the two types of electrical devices is helpful for choosing appropriate equipment and ensuring high safety standards of electric systems. This article compares the differences between isolators and circuit breakers through their work principles and functions.
An isolator is an electrical device that is used in a power system in order to isolate the power system from its source. The main purpose of using an isolator is to disconnect the circuit from the power source in order to ensure the safety of any personnel while operating on equipment. The isolator cannot be used for interrupting load current. In addition, the isolator does not have any arc extinction capability. The isolator provides the visible separation between the power source and circuit.
Zhejiang Chinehow Technology's Isolated Switch range illustrates this category well. The CRS1 Series DIN Rail isolator and the CRS1 Series Panel isolator are rated for AC and DC systems and are widely specified for several applications like construction and telecommunications.
A circuit breaker is an electrical device that is used in circuits in order to connect, disconnect, and protect circuits. A circuit breaker has the capability to disconnect the circuit in case of overloading and short-circuiting of circuits in order to avoid any damage or accidents to the equipment. In contrast to the isolator, the circuit breaker has arc extinction capability.

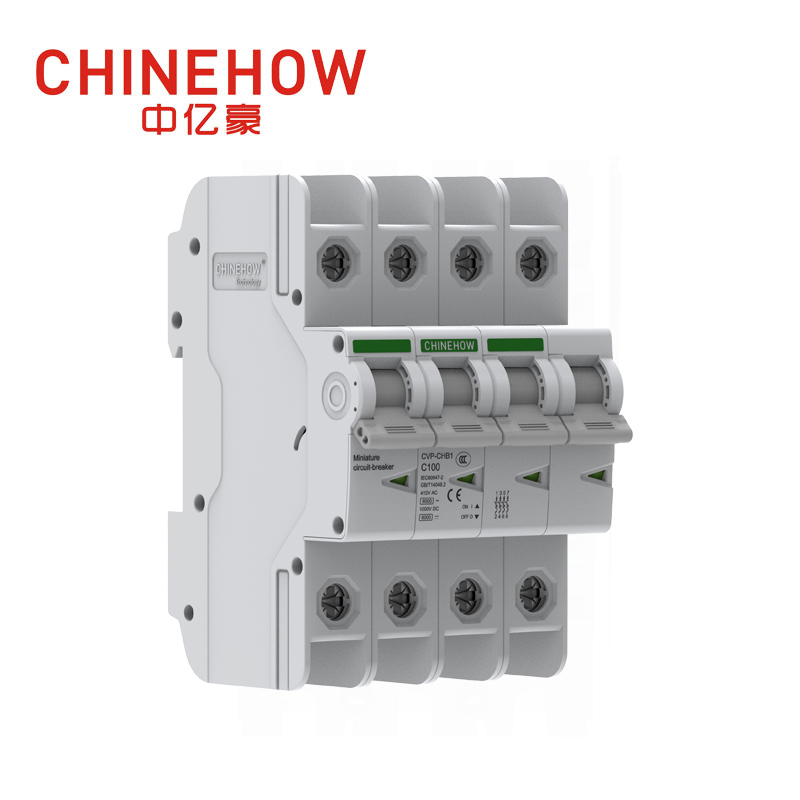

Chinehow's product line spans this function from residential-grade protection to industrial distribution. The Miniature Circuit Breaker range, including the CVP-CHB1 IEC series and the CVP-CHB1 North America series, covers standard final-circuit protection, while the Moulded Case Circuit Breaker range and the Hydraulic Magnetic Circuit Breaker range extend protection into higher-current, higher-breaking-capacity applications such as EV charging, energy storage, and industrial panels.
The table below summarizes the distinctions that matter most when specifying equipment for a panel or distribution board.
Parameter | Isolator Switch | Circuit Breaker |
Main Purpose | Offers physical isolation for maintenance purposes | Identifies and stops any current resulting from an overload or a short circuit |
Operational Procedure | Manual operation, but no automatic tripping | Automatic tripping through thermal, magnetic, or electronic sensing |
Load-breaking capabilities | Offload switching only (though some load-break types are available) | Rated to interrupt normal and fault currents |
Fault current interruption | Not rated for fault current interruption | Fault clearing capabilities are determined by its rated breaking capacity (Icu/Ics). |
Reset procedure after operation | N/A; not designed to "trip" | Can be reset once tripped |
Applicable standards | IEC 60947-3 | IEC 60898-1 (MCB) or IEC 60947-2 (MCCB) |
Panel location | Above the protection devices and at maintenance sites | Below the isolator, protecting each individual circuit |
Isolation verification | Often provides a visible air gap for lockout/tag-out verification | Not designed to provide isolation verification |
No, and this has to be said clearly because this is where most field errors happen. An isolator cannot substitute a circuit breaker because it cannot interrupt fault current at all; trying to open an isolator while there is a short circuit may melt its contacts, start an arc flash, and cause catastrophic failure of the panel.
Similarly, a circuit breaker cannot replace an isolator since most circuit breakers lack the certification for providing a guaranteed isolating function according to IEC 60947-3, although they can disconnect the circuit.
Why the two devices are typically installed together:
Isolators provide the verified safety break: the maintenance personnel must have some mechanism that ensures that the circuit is dead by giving a visual indication before work starts.
Breakers provide continuous protection: once the circuit gets energized, it is the breaker that gives protection against any fault.
Regulatory frameworks expect both: there are several national wiring rules and IEC guidelines requiring having a clearly identified isolator before the protective device, particularly those devices that require maintenance with a locked-out power supply.
That is why in panel designs, such as in solar PV, industrial motor control, and switchgear applications, an isolator is generally placed upstream of the breakers.
Isolators are specified wherever a system needs a dedicated, verifiable disconnection point rather than automatic protection:
Maintenance and service points: Isolators offer physical and lockable protection in the circuit where the technician can work on downstream devices.
Solar PV DC-side disconnects: DC isolator switches, such as those offered by Chinahow’s CRS1 series up to 1500 VDC, are used to isolate the PV string from the inverter as a safety measure during maintenance or emergency operation.
Motor control circuits: Isolators are placed before the motor starter/drives to make it possible to do a safe repair without depending on the switching capability of the starter.
Lockout-tagout (LOTO) points: Facilities managers trust isolators as the specified LOTO device because of its easily observable state.
Breakers are specified wherever automatic overcurrent and short-circuit protection is the priority:
Distribution boards and final circuits: MCBs provide overload and short circuit protection for lighting, sockets, and small power circuits.
Industrial and commercial switchboards: MCCBs and hydraulic magnetic breakers provide overload and short circuit protection for the feeder, motor circuits, and main in-comer where higher ratings are needed.
EV charging and energy storage systems: Fast, temperature-stable breakers are used to provide protection for the batteries, charger circuits, and inverter circuits where nuisance tripping and slower fault clearance are not an option.
Data centers and 5G/telecom power systems: Tight tolerance trip characteristics are required for breakers that provide protection for critical loads against faults on the upstream side of the circuit.
Confusing an isolator with a circuit breaker is not just a specification error; it is a safety hazard with direct regulatory and financial consequences.
Arc flash risk: Isolators do not have the capability to open circuits that have current flow. An attempt to break the circuit when there is current flow will create an arc flash, which may cause burn injuries, equipment destruction, and fire hazard. It is for this reason that isolators have off-load ratings, and load-break versions, where available, are tested for that purpose.
Lockout-tagout compliance: Procedures that involve the requirement of isolation points call for isolators, not breakers, due to the clear visual evidence of the air gap, which indicates whether there is current flow through the circuit or not. Using a breaker as the isolation point may create gaps in the chain of auditing processes.
Code and inspection compliance: Most electrical codes mandate that equipment must have a distinct disconnecting switch apart from the overcurrent protection switch. Mixing up these two purposes will lead to the failure of the inspection process.
Coordination and selectivity: In the case of multi-level distribution, proper positioning of the isolator with respect to the circuit breaker becomes essential for achieving selectivity so that in the event of any fault, the nearest upstream circuit breaker operates and not a larger area experiences a power outage.
In order to choose between an isolator and a circuit breaker, or even determine how many of each one a panel requires, a careful analysis of the application is required:
Define the primary requirement: If there is a need for a reliable isolation point for maintenance purposes, then select an isolator. In case there is a need for automatic safety in case of overloads or short circuits, then a breaker should be selected.
Confirm current and voltage ratings: Make sure that the current, voltage rating, and polarity rating of the device, if applicable, are equal to the values for your system, not to the nominal value of the load connected.
Check breaking capacity for breakers: Make sure that the breaker Icu/Ics rating is larger than the prospective fault current at the location of installation. Otherwise the breaker may not clear the fault.
Verify isolating function certification: If there is a need for an isolator functioning as a LOTO point, make sure that there is an isolator function rating according to IEC 60947-3 standards, not just a standard open switch.
Account for environmental conditions: Operating temperature range, altitude, and enclosure type matter in both cases. For instance, Chinahow's CRS1 isolator operates from -40°C to +75°C.
Plan for coordination between devices: Where both an isolator and a breaker are installed in series, confirm their combined arrangement meets the selectivity and discrimination requirements of the overall distribution design.
For applications spanning new-energy vehicles, rapid-charging infrastructure, energy storage, and PV systems, reviewing a manufacturer's full applications portfolio alongside its certifications can shorten the specification process considerably, particularly when a single supplier can provide both the isolator and the breaker rated for the same duty.
"An isolator is just a cheaper circuit breaker": This approach ignores the fact that these devices have completely different functions. While an isolator is a disconnecting device, a circuit breaker is a protection device. The cost of these devices is different because a breaker has additional mechanisms for monitoring and operation. There is no question about the quality here because both the isolator and the circuit breaker are different products.
"If a device has an on/off switch, it must be a circuit breaker”: Again, the isolator has the ability to open and close the circuit. It is the automatic detection and interruption of faults that differentiate a circuit breaker from other switches.
"RCDs and RCCBs are the same as isolators": Residual current devices detect the earth leakage currents and operate automatically; therefore, they are considered to be protection devices rather than isolators.
"A breaker in the off position is equivalent to isolation": Many breakers do not provide a visible, verified air gap and are not certified for the isolating function under IEC 60947-3. Relying on a breaker's off position as a maintenance isolation point, without a dedicated isolator, can fall short of both code requirements and good safety practice.
Both the isolator and the circuit breaker are important devices of the electrical system. These devices protect electrical devices from any kind of fault or damage. In addition to that, they are responsible for managing any kind of faulty condition.
In regard to their function, there is much similarity between the two devices. However, these two electrical devices differ in many aspects, including the way they operate and function, the different parts that they contain, and so on. Chinehow offers a wide range of electrical components for electronic equipment, so you can get a detailed insight into your kit.
No, you cannot use an isolator instead of a circuit breaker because an isolator does not provide automatic protection against overloads or short circuits.
No, an isolator switch does not switch off automatically during a fault. It manually operates only with no internal trip mechanisms.
In an electrical panel, the isolator typically comes first (upstream, closer to the main power supply), followed by the circuit breaker. The isolator comes first for a number of reasons: (1) electricity from the main supply enters the isolator (main switch) first before flowing into the circuit breaker and distribution busbars, and (2) placing the isolator first allows you to shut off and completely disconnect power to the entire panel—including the circuit breakers—so a technician can work safely without touching live wires.
Solar PV systems do not always require separate standalone units for both, because modern hybrid inverters often have integrated DC switches, but using both a dedicated DC isolator and an overcurrent protective device (breaker or fuse) provides the safest and most compliant setup.
