With the rising popularity of electric vehicles and energy storage technology, there is a corresponding increase in demand for efficient EV charging and energy storage solutions. One important element of a DC fast charger is a high-voltage DC contactor. Choosing a proper high-voltage DC contactor helps to ensure that the power transfer is safe and efficient.
In this guide, we will discuss factors that you should take into account when sizing a high-voltage DC contactor.
The DC contactor is used in the power flow between your battery pack and the load (EV drive inverter or a PCS in a stationary storage rack). It is obvious that it must be able to open and close the circuit. The physics of doing that is what makes a DC contactor difficult.
In an AC circuit, the current goes to zero 100 or 120 times a second, thus providing natural opportunities for arc extinction. With DC current, it does not happen. An arc formed between separating contacts in a DC circuit stays on until some external force (magnetic blowout, contact geometry, or even the interrupting design of the contactor itself) removes it from the system. This is why you can't just use the AC current rating to define the capabilities of the DC contactor.
In a typical EV or ESS architecture, you'll usually see three contactor roles:
Main positive and negative contactors: This is a set of contactors that carry all of the pack current and act as a primary isolation for the battery.
Precharge contactor: A low-rated contactor, normally along with a resistor, used to control the inrush current to the main contactor at initial closure into a capacitive load.
Fast-charge or auxiliary contactors: Found in EV and hybrid ESS systems where an additional current path must be switched independently.
DC contactors should be sized not only on the nominal pack voltage. The battery voltage changes throughout the state-of-charge range; thus, you will have to use the contactor rated voltage to ensure its ability to handle maximum pack voltage, which may occur even during charging or balancing.
Don't size to your nominal pack voltage alone. Battery voltage swings across the state-of-charge window, so you need the contactor's rated voltage to cover the maximum voltage the pack will ever present, including balancing conditions and charge termination.
Match voltage class to your architecture: for 400V platforms you'll have to use contactors rated at 450 to 750 VDC. However, for 800V platforms the contactors will be 900-1000VDC class; utility-scale ESS strings working at 1500VDC require contactors of the same class, rated and tested to work at this level.
Check the dielectric withstand rating separately from the operating rating: A contactor’s insulation must resist overvoltage transients, not just steady states.

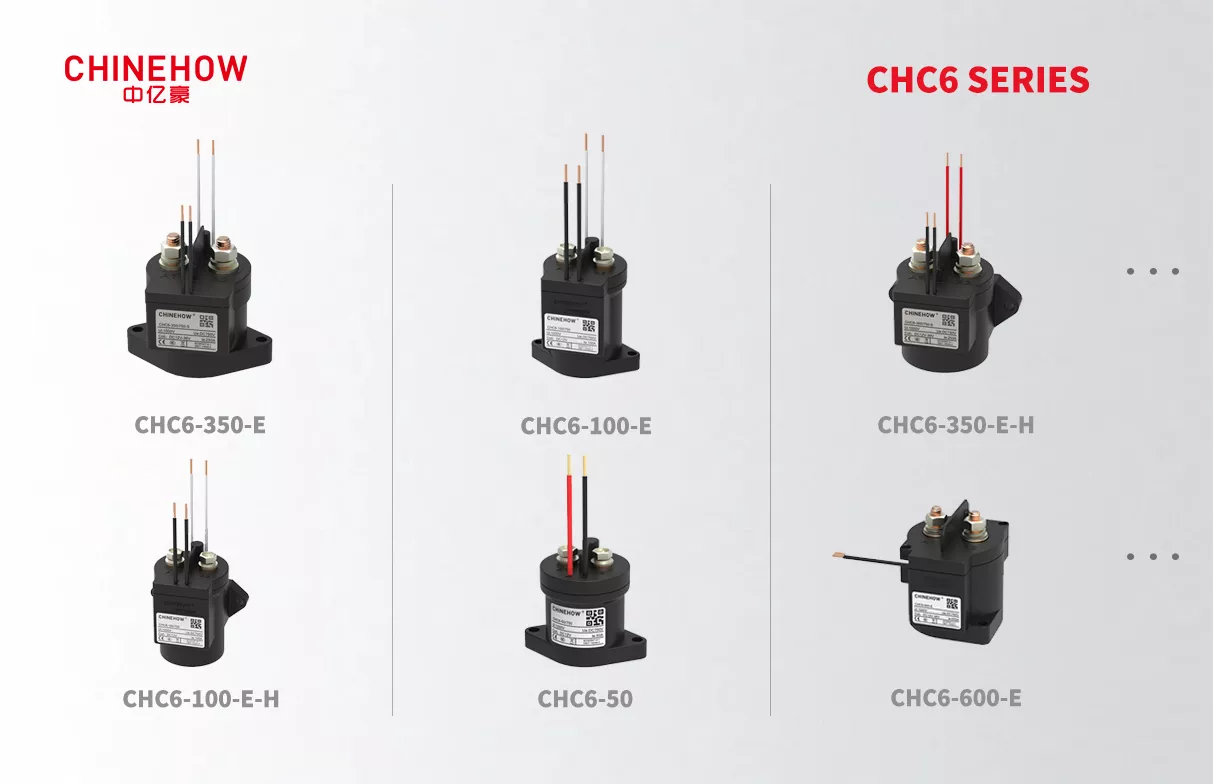

Chinehow's CHC6 Series HVDC contactors covers this range directly, with models rated up to 1500VDC to support both automotive and grid-scale voltage classes without forcing you into a custom part.
Your continuous current rating needs to reflect the worst realistic operating condition, not the average one. Look at:
Nominal load current: The current drawn by the system when it is in normal and steady-state operation.
Peak or surge current: The transient currents seen during periods of acceleration, regenerative braking, or rapid charging events.
Duty cycle: The frequency and duration of closure of the contactor in the loaded state. The duty cycle of an electric vehicle main contactor can last several hours, while the duty cycle of the energy storage system contactor can be continuous for many days.
Ambient temperature derating: Manufacturers publish derating curves because contact resistance and thermal dissipation change with enclosure temperature. A contactor rated for 300A at 25°C won't necessarily hold that rating inside a sealed 60°C battery compartment.
This is where a lot of sizing guides stop short, and it's exactly where undersized contactors fail in the field.
The carrying current of the contactor is the current the device carries during stable closure.
Interrupting current of the contactor is the current that the contactor needs to interrupt safely and securely without welds on the contacts or formation of arc.
The short circuit interrupting rating gives information about how the contactor performs when interrupting a fault current much higher than its normal operational current.
If your interrupting rating doesn't match your fault current scenario, you end up with a contactor that welds shut precisely when you need it to open. That's the scenario every BMS engineer wants to avoid.
Contactor datasheets list two life figures: mechanical life (operations without electrical load) and electrical life (operations while switching rated current). Match this to your actual application. An EV that cycles its main contactor dozens of times a day needs a different life rating than a stationary ESS unit that might close once and stay closed for weeks.
In any EV inverter and any ESS power conversion system, there are DC-link capacitors present on the load side. Connecting the main contactor directly onto the uncharged capacitor bank results in an inrush current spike, which is ten times or more than your regular operating current for a few milliseconds. This amount of inrush current spike is capable of welding the contact points on the contactor, which does not have the capability of withstanding the inrush current spike.
The reason for having a precharge circuit is this inrush current spike, which the lower-rating contactor is capable of withstanding by having a precharge resistor in series along with the contactor.
Size the precharge resistor and contactor together: The resistor restricts current flow, while the contactor requires sufficient interrupting capability for the remaining current should the pre-charge circuit need to be interrupted in case of a fault.
Set precharge time as a system parameter, not an afterthought: If too fast, then the main contactor may not be protected. If too slow, it delays the entire start-up procedure.
Verify your main contractor's rating assumes precharge is already complete: If the architecture of your design isolates the main contractor from the raw inrush current, don't oversize the main contactor for this scenario. This would be over-design and an added cost burden.
Interrupting a DC arc at 400V, let alone 1000V or 1500V, takes deliberate design, not just bigger contacts.
Blow-out designs use a magnetic field to elongate and dissipate the arc rapidly and are common in most automotive and ESS-quality HVDC contactors.

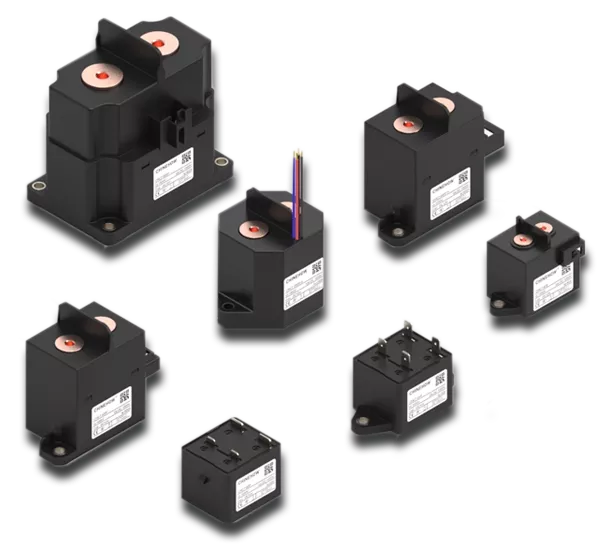

Hermetically sealed and ceramic-sealed contactors keep the contact chamber isolated from ambient contamination and moisture, extending life in harsh underhood or outdoor cabinet environments. Chinehow's CHC Series ceramic-sealed relays fall into this category, built specifically for automotive and high-cycle applications where sealing quality determines service life.
Contact material selection matters for weld resistance: Silver-tin-oxide (AgSnO₂) and silver-nickel alloys are common choices because they resist material transfer during repeated switching, which directly extends electrical life under real duty cycles.
Datasheet ratings assume standard test conditions. Your installation almost certainly doesn't match them exactly.
Ambient and enclosure temperature: Battery packs and ESS cabinets can be very warm. Use the derating graph provided by the manufacturer for your own expected operating temperature, not the ambient temperature.
Altitude derating: Low air density at high altitudes causes reduced dielectric strength and is significant for rooftop solar panels and mountainous region ESS systems, along with EV vehicles that operate at altitude. The contactors that are rated for sea level operation may require voltage derating beyond 2000 meters.
Vibration and shock: In automotive applications, contactors have to meet certain vibration specifications, while ESS devices have other considerations regarding shock and seismic events based on their location.
Ingress protection (IP rating): For underhood compartments of EV, battery packs, and outdoor ESS cabinets, there are different requirements. It should be confirmed that the IP rating of contactors corresponds to their actual installation site.
EV powertrains put contactors through frequent, high-cycle switching combined with a wide voltage window as the battery ages and its internal resistance changes.
Main pack contactors (positive and negative): Size to the largest possible maximum continuous discharge current requirement of your drive inverter, including any regenerative braking current that flows in the other direction but is still within the ratings.
Precharge contactor: Size specifically to the DC link capacitance of your inverter, rather than some general percentage of the main contactor's rating.
Fast-charging path: During fast charging, currents are much higher than during normal operation for prolonged durations, making thermal cycles more important than maximum current alone.
Coordination with BMS and fuse protection: The interrupting capacity of your contactor must be designed to cooperate with your pack fuses, rather than fight them. If your fuses cannot clear the fault quick enough, your contactor may be required to interrupt an overload current.
ESS applications differ from EVs in one major respect: duty cycle. A stationary battery contactor often closes once and stays closed for hours or days, rather than cycling dozens of times daily.
PV string and combiner box contactors vs. battery-side contactors: The fault conditions that will exist on the solar side of the circuit are different from those existing on the battery side due to the differences in behavior of PV strings and battery packs during short circuits.
Continuous duty rating matters more than cycle life here: It’s important that the contractor can handle sustained periods of closing, rather than having a high rating in terms of switching cycles.
Coordination with SCADA and emergency shutdown systems: A grid-tied installation will need to have some form of fast shutdown capability. This should be taken into account when designing your contactor sizing criteria.
Parallel string switching: If two or more strings of batteries are connected to the same bus, it will be necessary to take into account load imbalance rather than total system current divided equally between strings.
Step 1: Voltage window definition—Determine minimum and maximum pack voltage throughout the complete state-of-charge range, including any overvoltages.
Step 2: Continuous and Peak Current—Account for regeneration, fast charge current, or any load-sharing scenario with parallel strings.
Step 3: Interrupting Capacity—Determine from your fault current scenario and how you coordinate with any fuse or breaker protection upstream.
Step 4: Duty Cycle and Cycle Life Target – Determine the cycle life of the contactor relative to your estimated switching frequency throughout service life.
Step 5: Environmental Derate – Account for ambient temperature, altitude, and enclosure considerations.
Step 6: Coil and Control Voltage—Make sure there is compatibility with your existing low-voltage infrastructure and any PWM coils if necessary.
Step 7: Certification requirement—Make sure the contactor you have selected is certified to standards relevant to your end market application. Typical certifications to consider would be UL 2202 / UL 2231 (EV charging systems) / IEC 60947-4-1 / IEC-related contactor standards / ISO 6469 (EV electrical safety).
The DC contactor acts as the final gatekeeper and physical barrier for the entire energy storage system. In selecting this device, you must carefully consider the voltage spikes, bi-directional fault currents, and environmental sealing.
For safety, Chinehow manufactures a comprehensive line of solar system & energy storage contactors for high-demand applications. Contact us now for customized high-voltage switching solutions for your next project.
An electric vehicle (EV) battery pack contactor requires a voltage rating that is at least 1.25 times the maximum working voltage of your battery system, typically translating to 500V to 1000V DC or higher.
To calculate the required continuous current rating for a Direct Current (DC) contactor, multiply your load's normal operating current by a safety and duty factor of 1.25 to 1.50, and then apply derating factors for temperature and altitude.
Yes, you can often use the same contactor model for both Electric Vehicle (EV) and Stationary Energy Storage System (ESS) applications, provided the contactor’s continuous current, maximum system voltage, and breaking capacity align with the requirements of both systems.
